Shift Interlock Solenoid: Locations

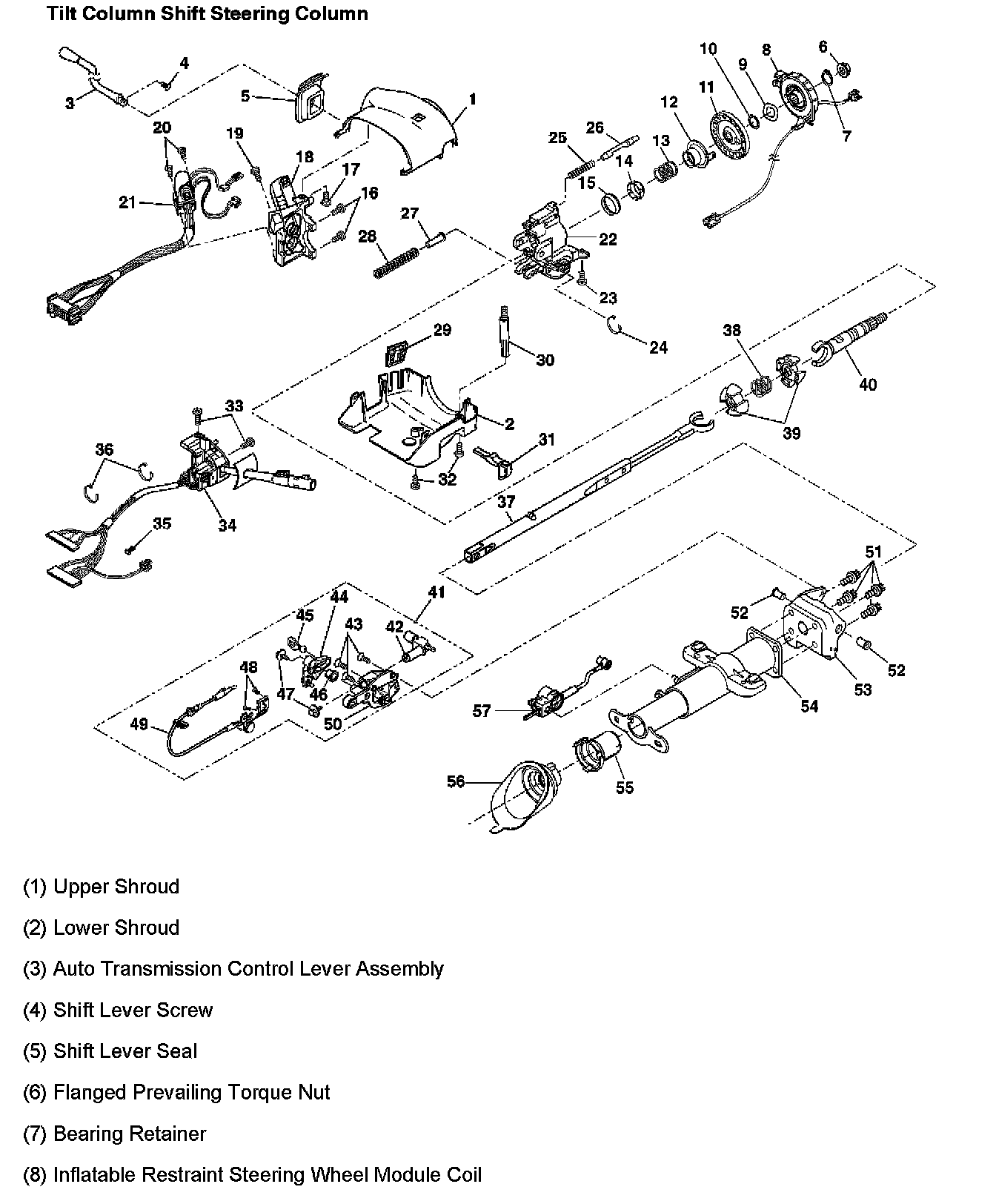

Tilt Column Shift Steering Column Part 1:

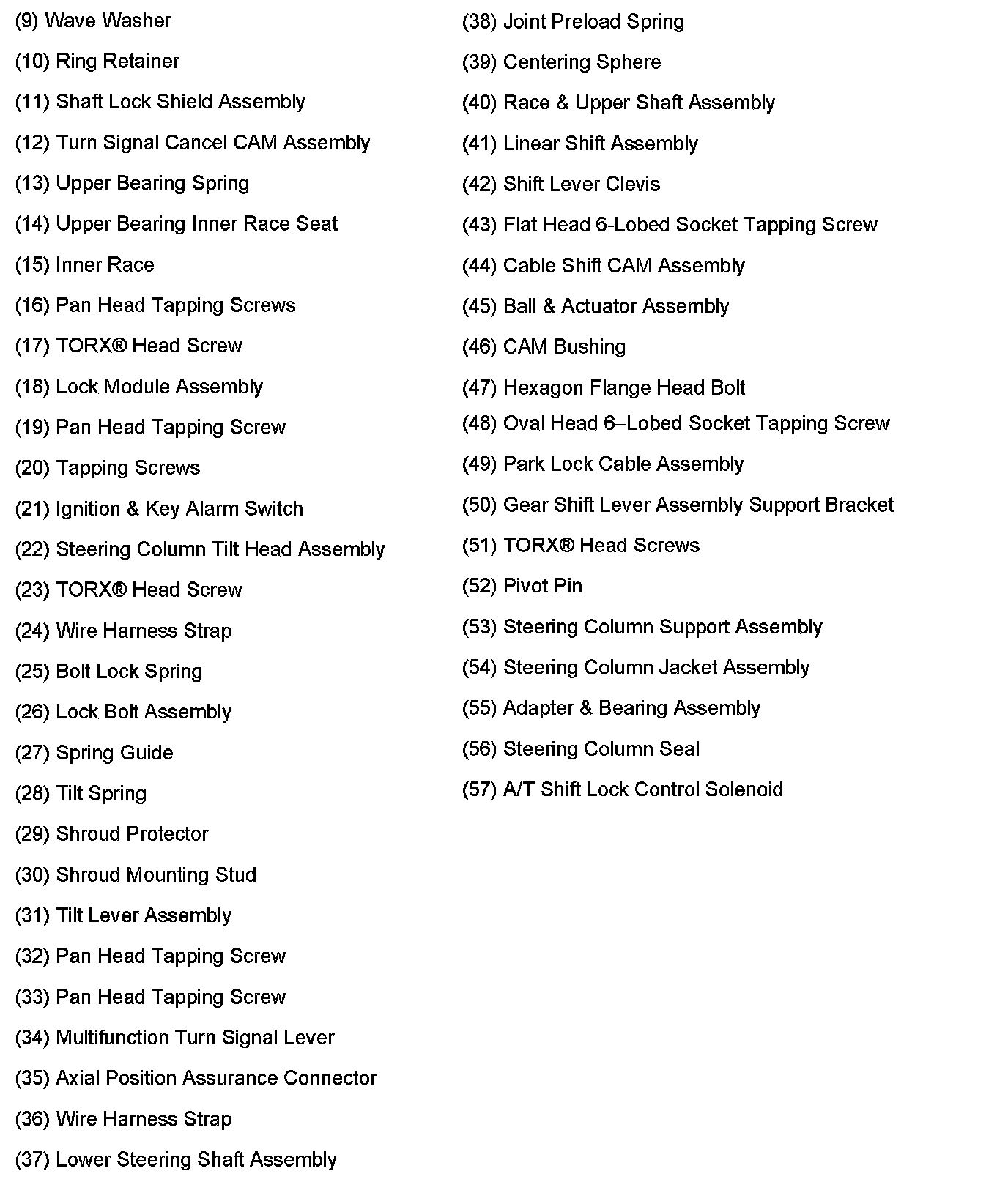

Tilt Column Shift Steering Column Part 2:



Tilt Column Shift Steering Column Part 1:

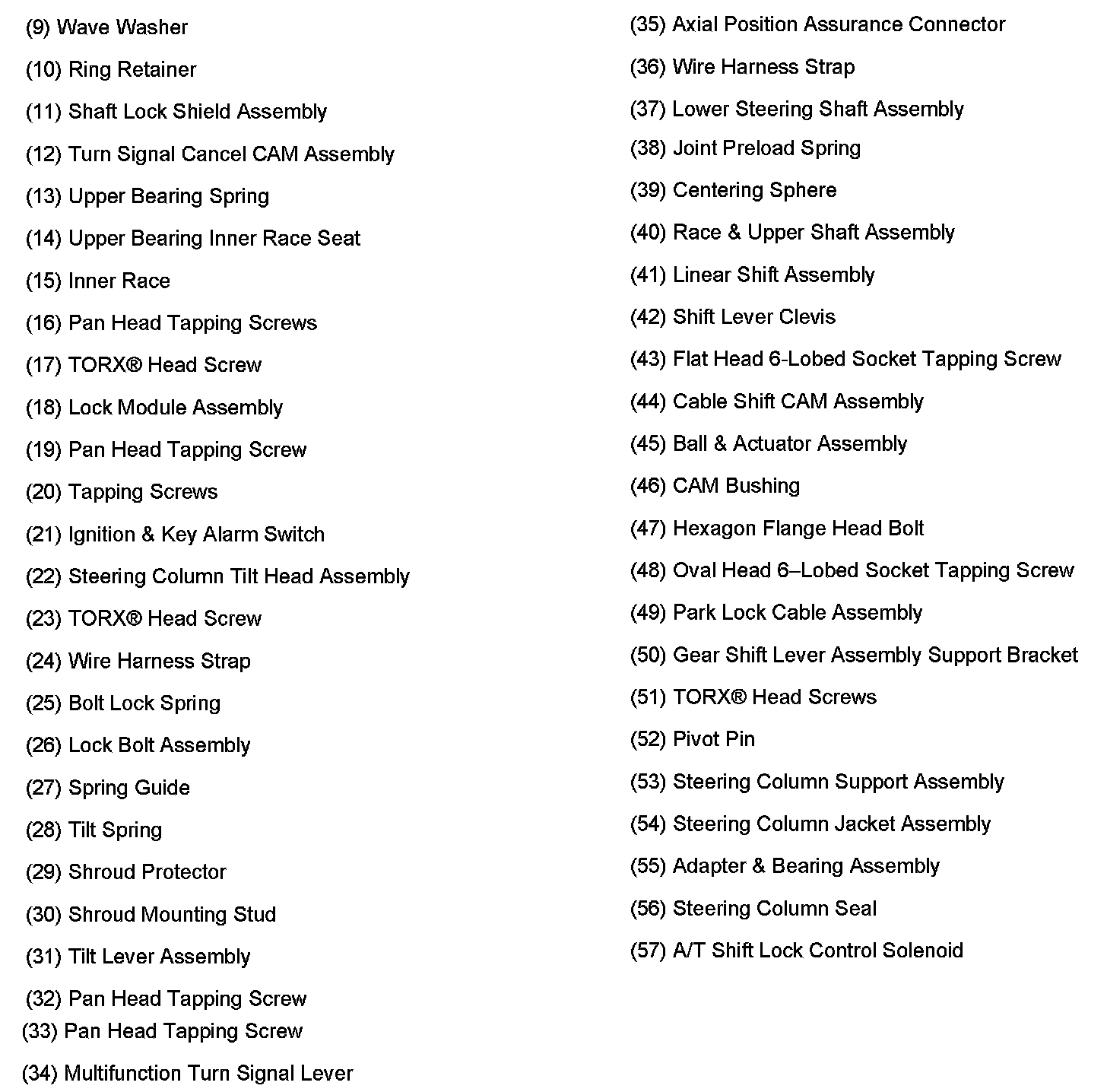

Tilt Column Shift Steering Column Part 2:
