Torsion Bar: Service and Repair

Torsion Bar Replacement

^ Tools Required
- J 36202 Torsion Bar Unloading/Loading Tool

Removal Procedure

Notice: Use care when handling the torsion bars in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the torsion bars.





1. Raise the vehicle. Refer to Vehicle Lifting.

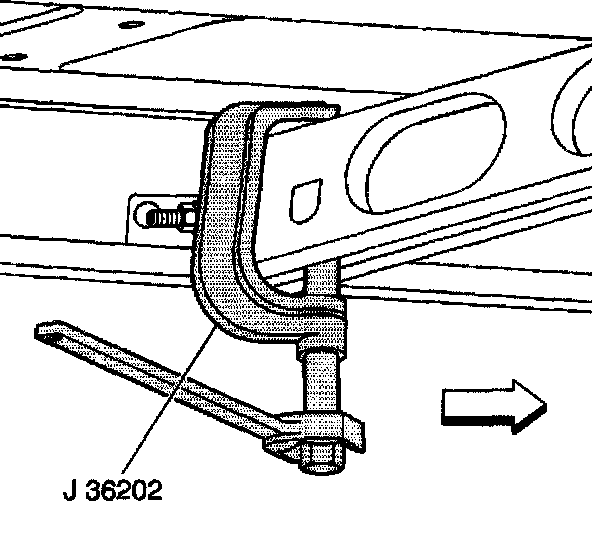

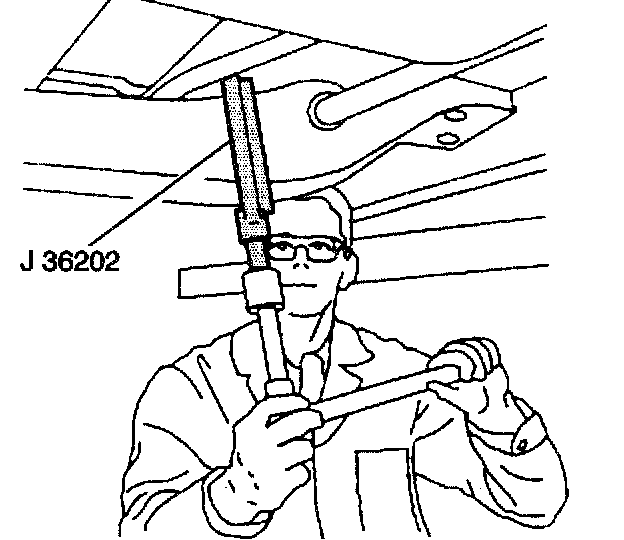

2. Install the J 36202 to the torsion bar adjuster arm.
3. Using the J 36202, increase the tension on the adjustment arm.





4. Remove the adjustment bolt and the retaining nut. Record the number of turns required in order to remove the adjuster bolt.
5. Remove the J 36202 from the adjuster arm.

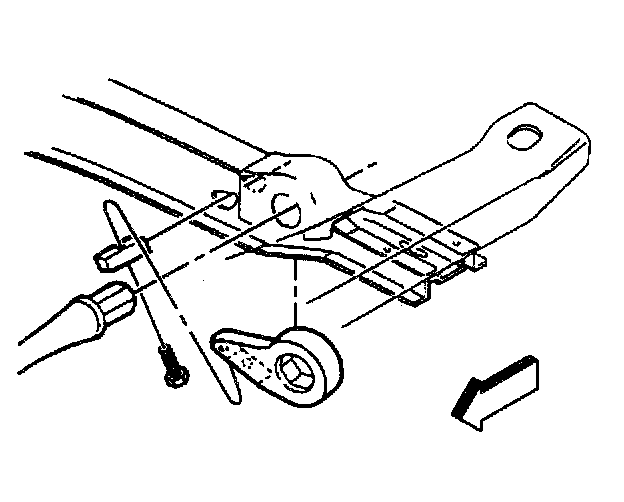

6. Slide the torsion bar forward and remove the adjustment arm.

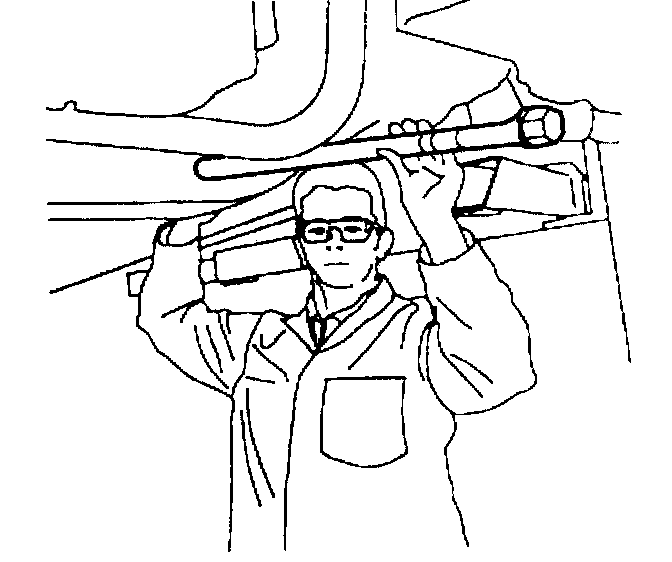

7. Slide the torsion bar back partially through the crossmember.





Important: Note the L for left and the R for right on the front end of the torsion bar because there are different bars for the left and right sides.

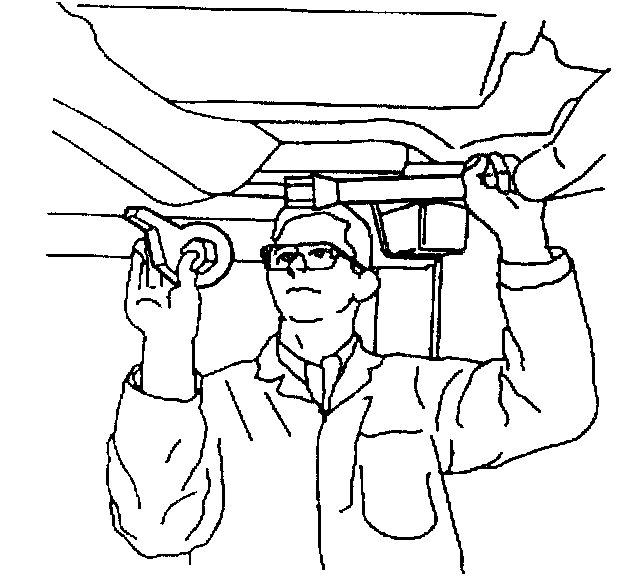

8. Drop the front end of the torsion bar down and slide the bar forward.

Installation Procedure

Important: Note the L for left or R for right on the front end of the torsion bar because there are different bars for the left and right sides.

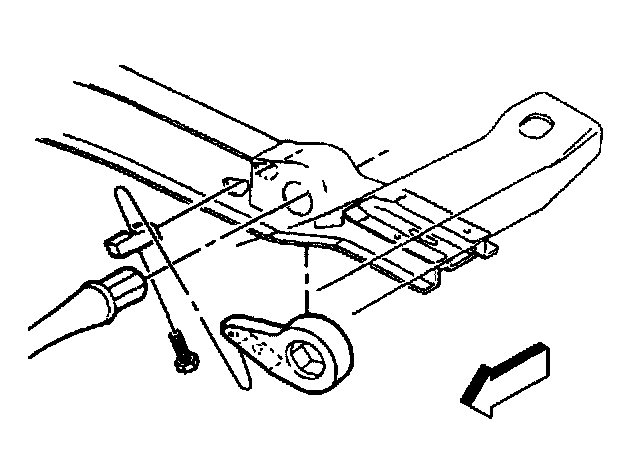

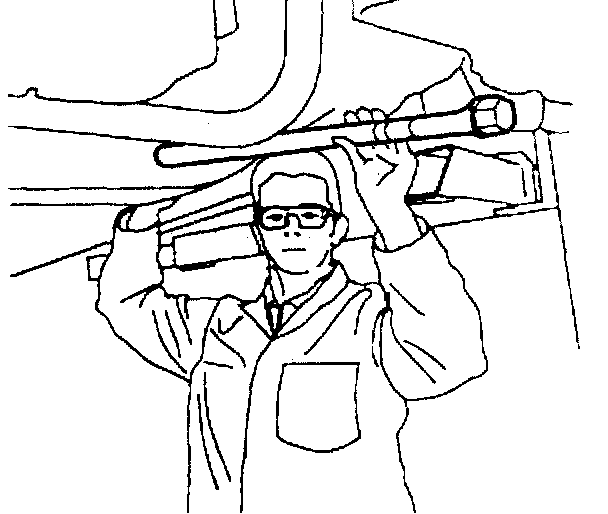

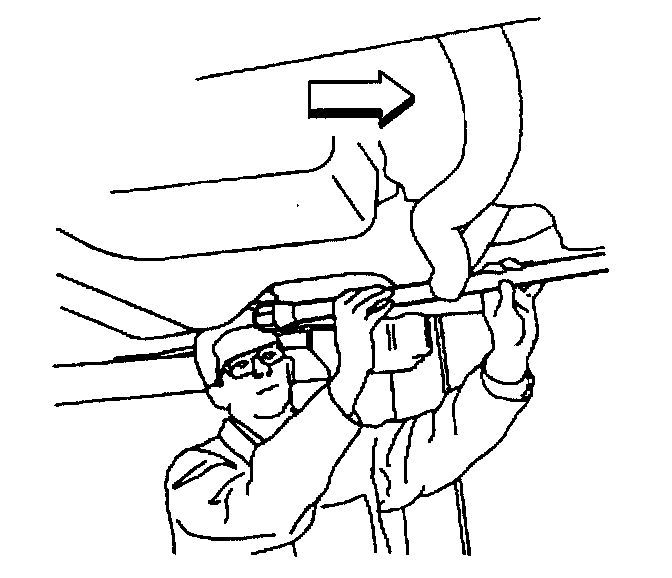

1. Install the torsion bar.





2. Lubricate the adjuster arm and the bolt with axle grease

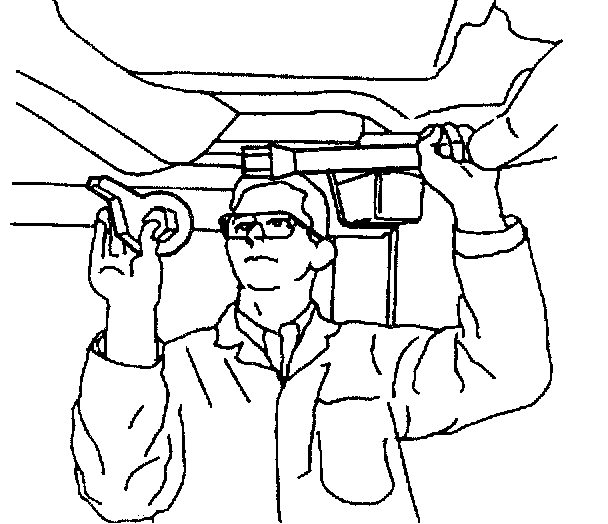

3. Install the torsion bar adjuster arm.

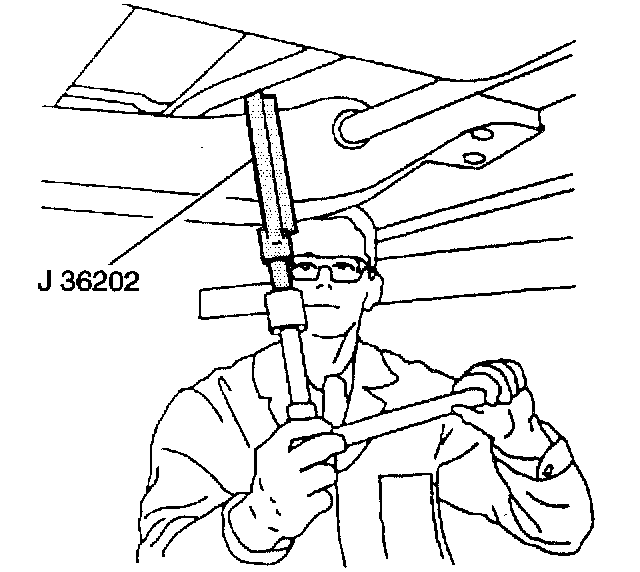

4. Install the adjustment bolt and retaining nut. Using the J 36202, increase the tension on the torsion bar.
5. Install the J 36202 to the adjuster arm.

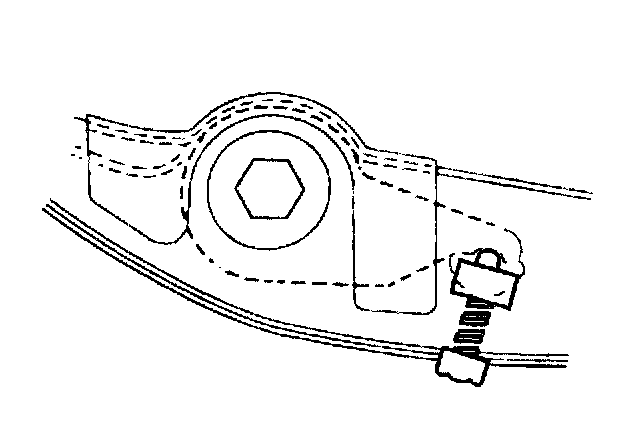

6. Set the adjustment bolt to the recorded setting.





7. Using the J 36202, release the tension on the torsion bar until the load is taken up by the adjustment bolt.
8. Remove the J 36202.
9. Lower the vehicle.
10. Check the Z height.
