Turn Signal & Multifunction Switch - Assemble

Turn Signal and Multifunction Switch Assembly - Assemble - Off Vehicle

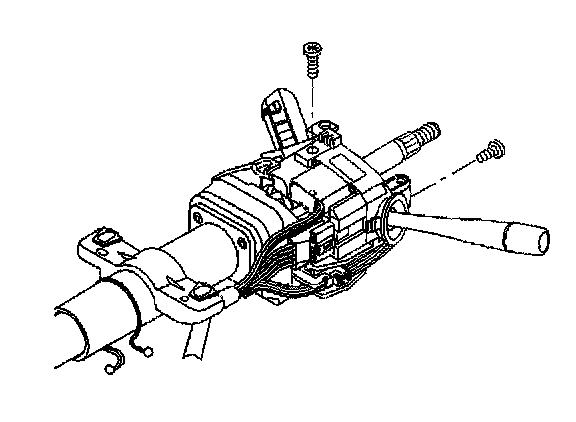

1. Install the turn signal and multifunction switch assembly.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 2 pan head tapping screws.
- Tighten the screws to 7 Nm (62 inch lbs.).





3. Slide the 2 connectors (2) onto the bulk head connector (1).





Caution: Refer to SIR Inflator Module Coil Caution in Service Precautions.

4. Install the wire harness strap (2) into the steering column tilt head assembly (1).
5. Install the wire harness straps (3) onto the wire harness assembly (4).
6. Install the wire harness assembly (4) into the wire harness strap (5).
7. Install the upper and lower trim covers.
8. Enable the inflatable restraint steering wheel module.
