Ignition Lock Cylinder Case

Ignition Lock Cylinder Case Replacement (Standard Column)

Tools Required

J 41396 Park Lock Cable Pliers

Removal Procedure

Caution: Refer to SIR Caution in Cautions and Notices.

For prerequisite Steering Column procedures see Steering Wheel and Column Disassembly and Assembly under Steering and Suspension, Steering, Steering Column, Service and Repair, Procedures. Service and Repair

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
2. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement.
3. Remove the steering column tilt head housing. Refer to Steering Column Tilt Head Housing Replacement (Tilt).
4. Remove the ignition switch only. Refer to Ignition Switch Replacement.

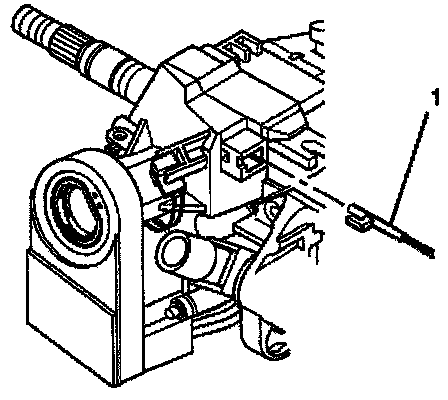

5. Remove the park lock cable assembly (1) from the ignition lock cylinder case.

5.1. Place the lock cylinder in the OFF-LOCK position.
5.2. Place the shift lever clevis into the PARK position.
5.3. Insent a small screwdriver into the slot on the ignition lock cylinder case. Push against the locking tab on the end of the park lock cable assembly (1).
5.4. Disconnect the park lock cable assembly (1) from the ignition lock cylinder case.

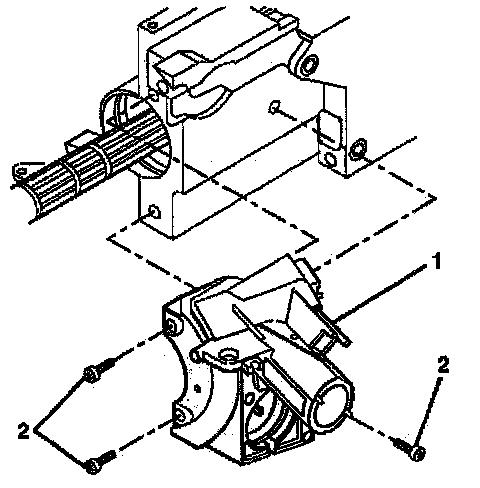

6. Remove the 3 pan head tapping screws (2) from the ignition lock cylinder case (1).
7. Remove the ignition lock cylinder case (1) from the steering column housing assembly.

Installation Procedure






1. Install the ignition lock cylinder case (1) onto the steering column housing assembly.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Screw the 3 pan head tapping screws (2) into the ignition lock cylinder case.

Tighten

Tighten the pan head tapping screws to 7 N.m (62 lb in).

Caution: Refer to SIR Inflator Module Coil Caution in Cautions and Notices.

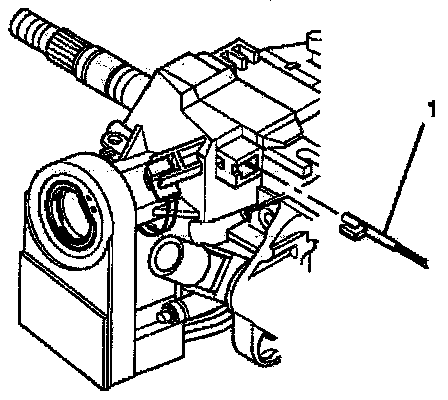

3. Connect the park lock cable assembly (1).

- Place the lock cylinder in the OFF-LOCK position.
- Place the gear shift lever clevis into the PARK position.
- Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.

4. Install the ignition switch. Refer to Ignition Switch Replacement.
5. Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing Replacement.
6. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement.
7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
