Remote Power Steering Fluid Reservoir Replacement

Remote Power Steering Fluid Reservoir Replacement

Removal Procedure





1. Place drain pan under the vehicle.
2. Draw all of the fluid out of the reservoir in order to avoid spills.

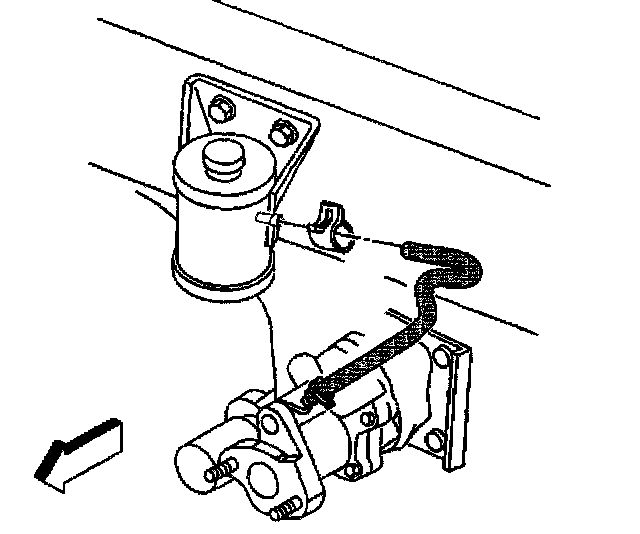

3. Disconnect the hydraulic brake booster hose from the power steering reservoir.





4. Disconnect the power steering reservoir to the power steering pump hose from the power steering reservoir.

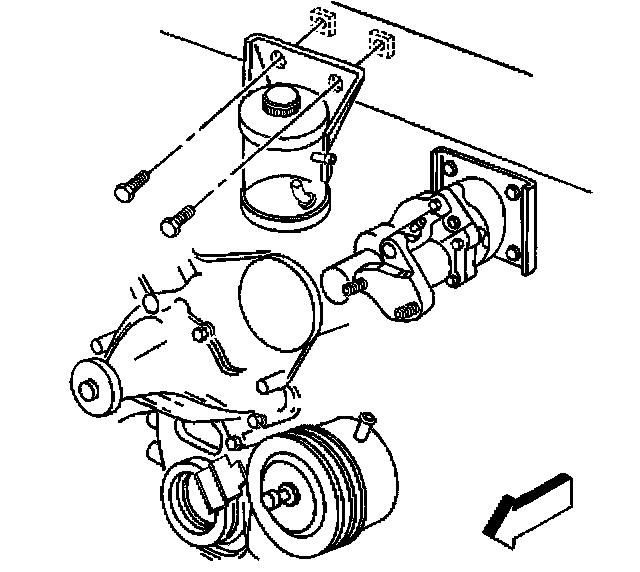

5. Remove the power steering reservoir mounting bolts.
6. Remove the power steering reservoir.

Installation Procedure





1. Install the power steering reservoir.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the power steering reservoir mounting bolts.
- Tighten the power steering reservoir mounting bolts to 4 Nm (35 inch lbs.).





3. Connect the power steering reservoir to the power steering pump hose to the power steering reservoir.





4. Connect the hydraulic brake booster hose to the power steering reservoir.
5. Bleed the power steering system.
