Front Drive Axle

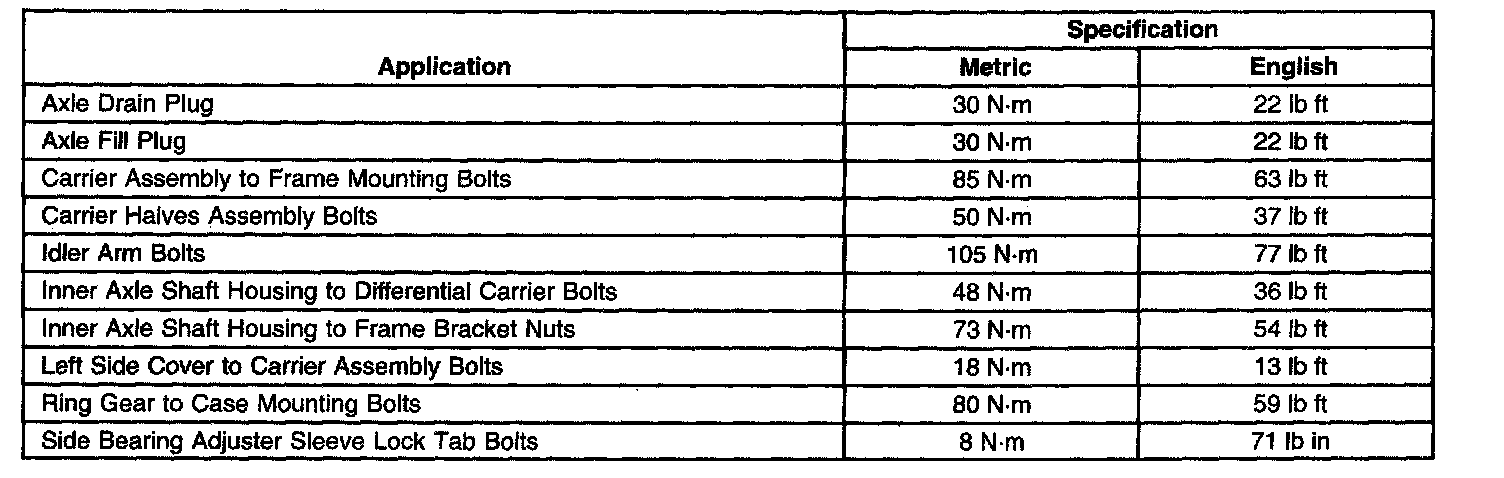

Fastener Tightening Specifications

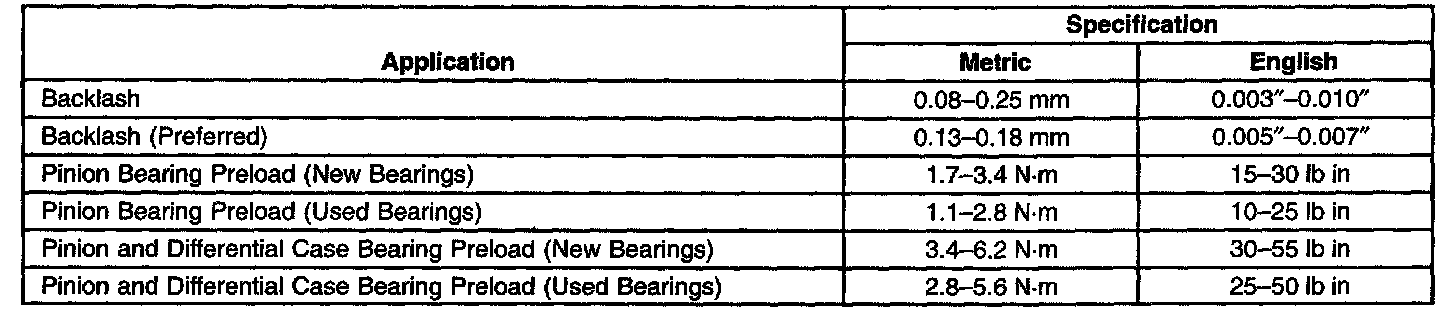

Pinion Preload and Backlash





Sealers, Adhesives, and Lubricants
