Home
>>
Chevy Truck
>>
2003
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Grounding Point
>>
Diagrams
>>
Electrical Diagrams
>>
G200-299
G200-299

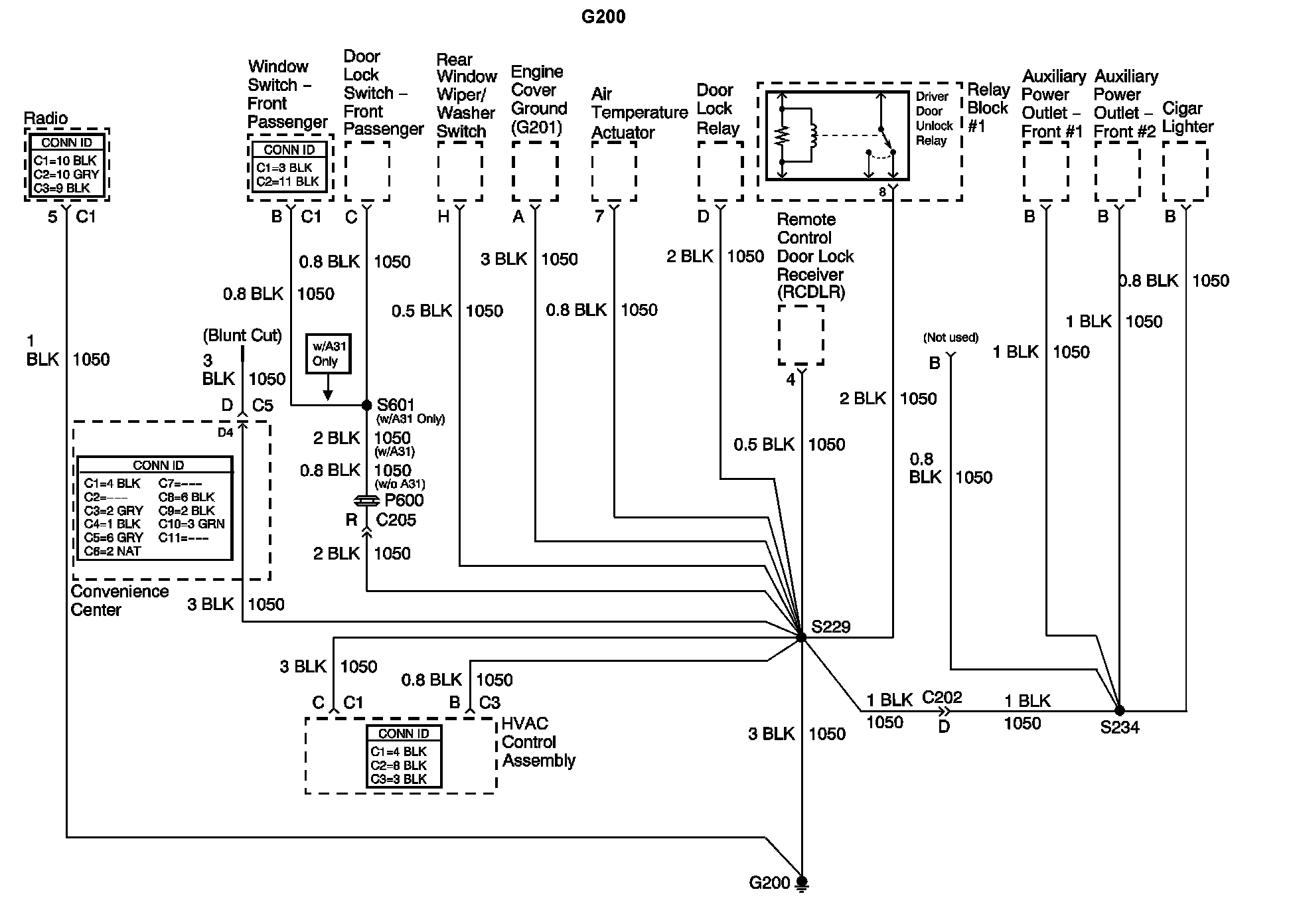

Ground Distribution Diagram 6:
