Chevy Truck
>>
2003
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G300
G300

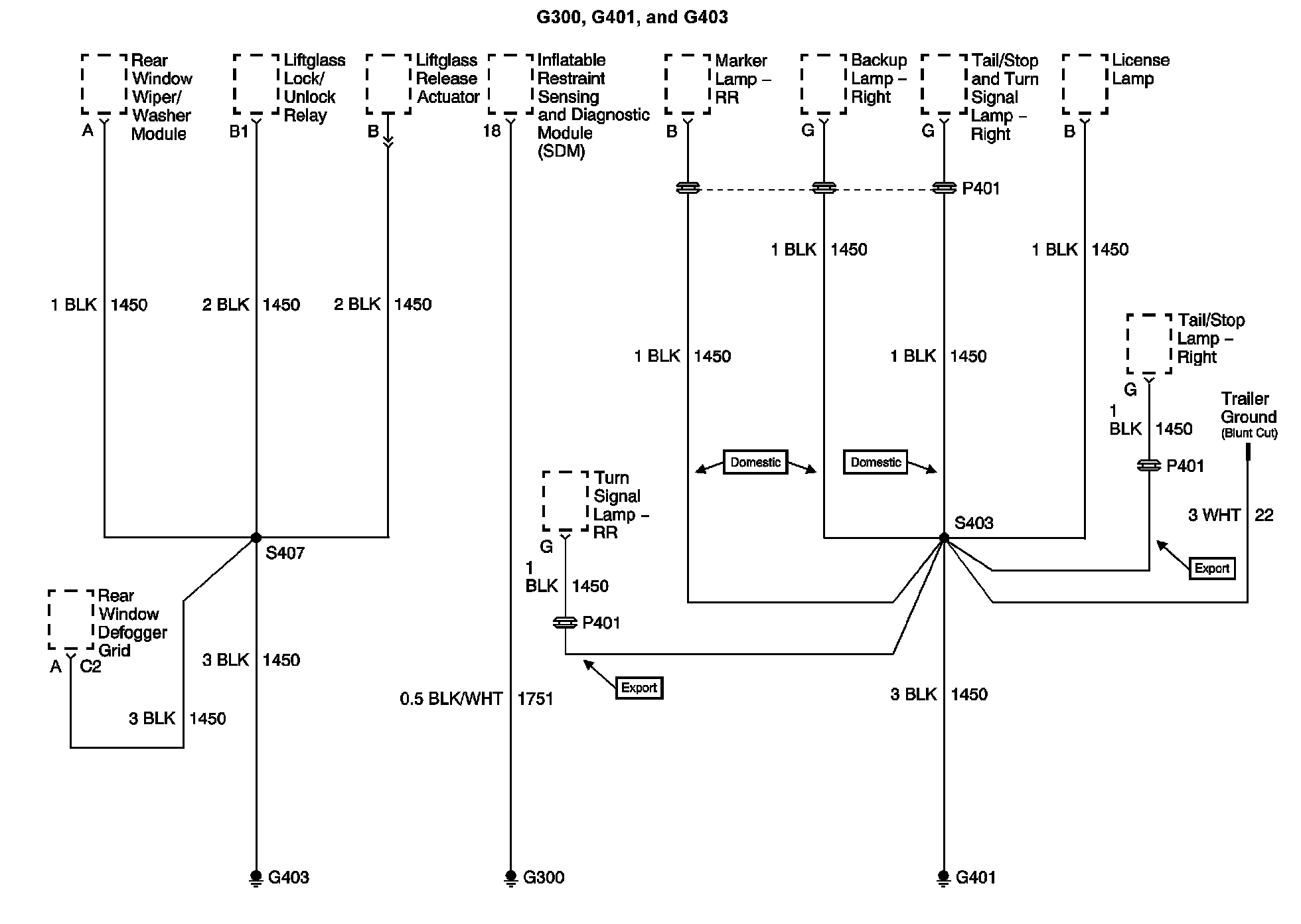

Ground Distribution Diagram 7:
