Zone 5

1. Remove the key from the ignition.




2. Connect the I/P module yellow 2-way connector (1) located behind the main I/P support.
3. Install the CPA to the I/P module yellow 2-way connector (1) located behind the I/P support.
4. Install the passenger knee bolster.

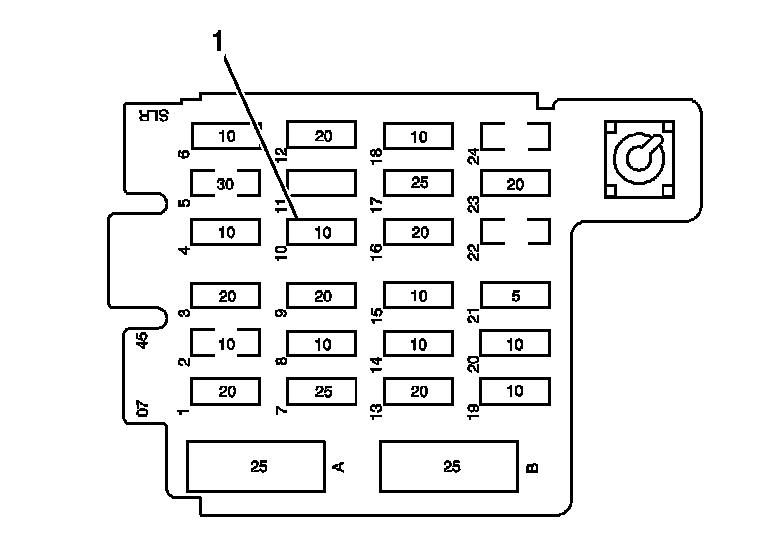

5. Install the AIR BAG fuse to the I/P fuse block (1) located in the I/P fuse block.
6. Staying well away from all air bags, turn ON the ignition, with the engine OFF.
6.1. The AIR BAG indicator will flash 7 times.
6.2. The AIR BAG indicator will then turn OFF.
7. Perform the Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
