Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE
1. Remove the air cleaner assembly.
2. Remove the upper fan shroud.

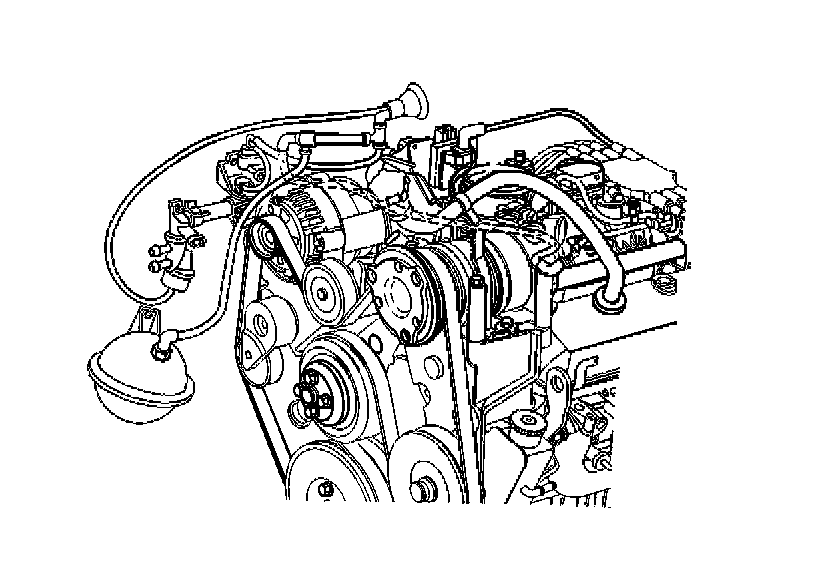

3. Remove the vacuum hoses from the vacuum tank.

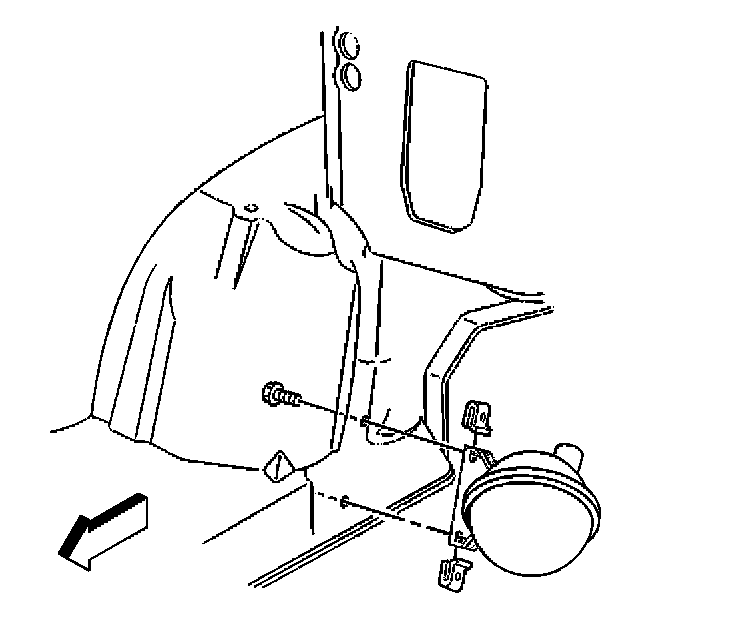

4. Remove the vacuum tank mounting screws.
5. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the vacuum tank.

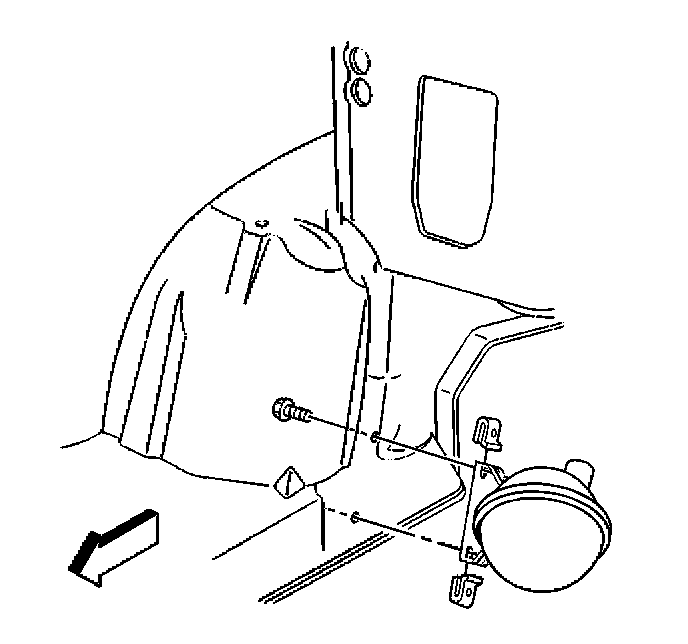

2. Install the vacuum tank mounting screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 3 N.m (26 lb in).




3. Install the vacuum hoses to the vacuum tank.
4. Install the upper fan shroud.
5. Install the air cleaner assembly.
