Accumulator Tube Replacement - Auxiliary Side
ACCUMULATOR TUBE REPLACEMENT - AUXILIARY SIDETOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant from the system.
2. Raise and support the vehicle. Refer to Vehicle Lifting.

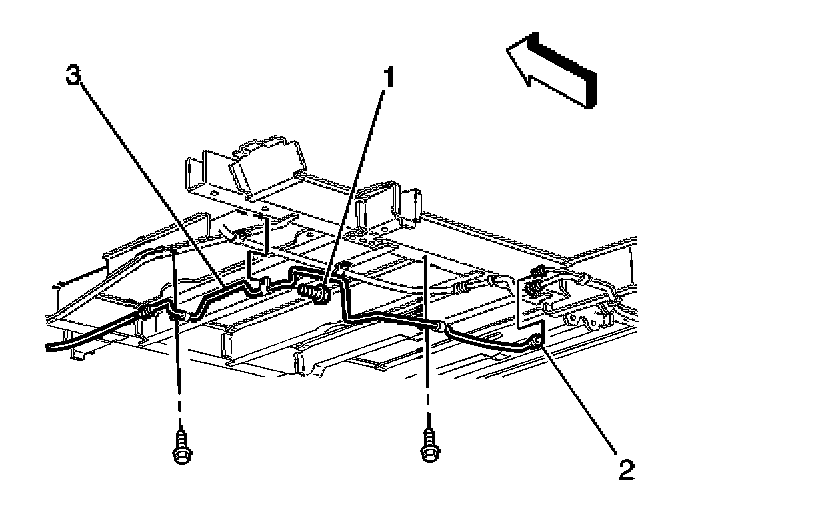

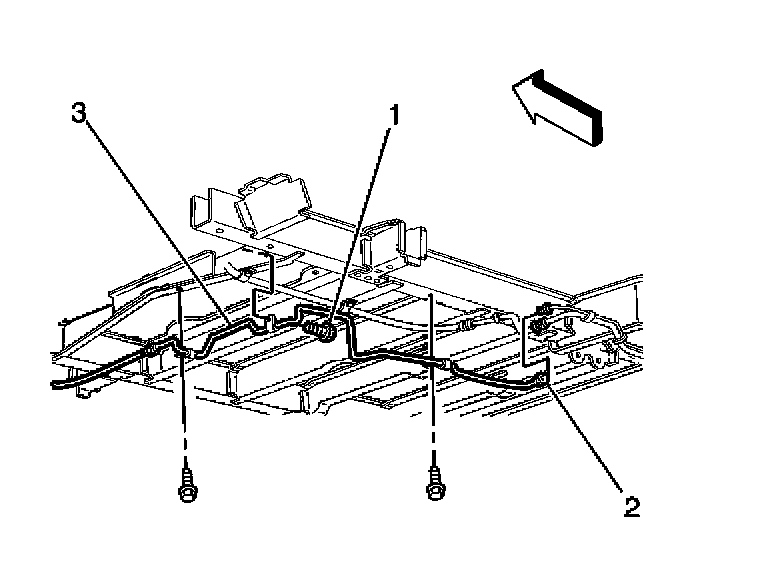

3. Remove the auxiliary evaporator outlet side tube (3) from the rear tube.
4. Remove the O-ring seal.

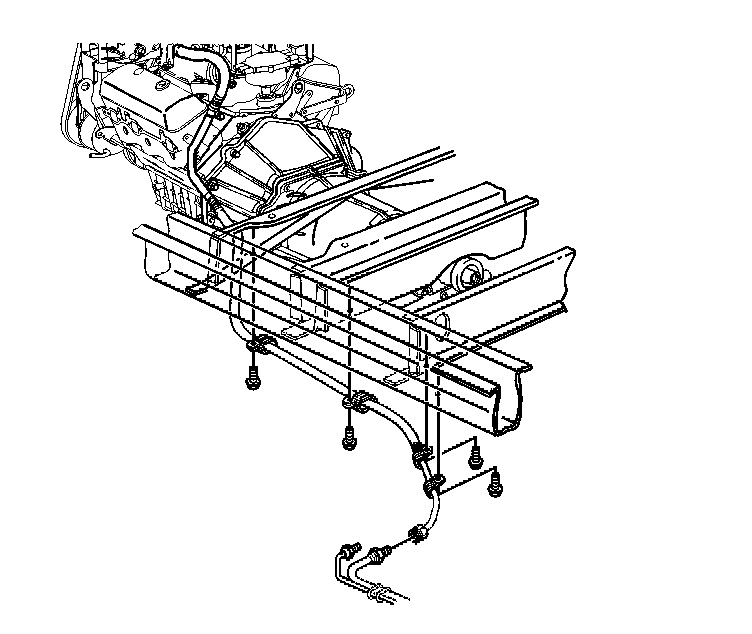

5. Remove the auxiliary evaporator outlet side tube from the compressor hose assembly.
6. Remove the O-ring seal.
7. Remove the bolts (1) that retain the clips on the outlet side tube (3) to the body.
8. Remove the auxiliary evaporator side tube (3) from the vehicle.
INSTALLATION PROCEDURE

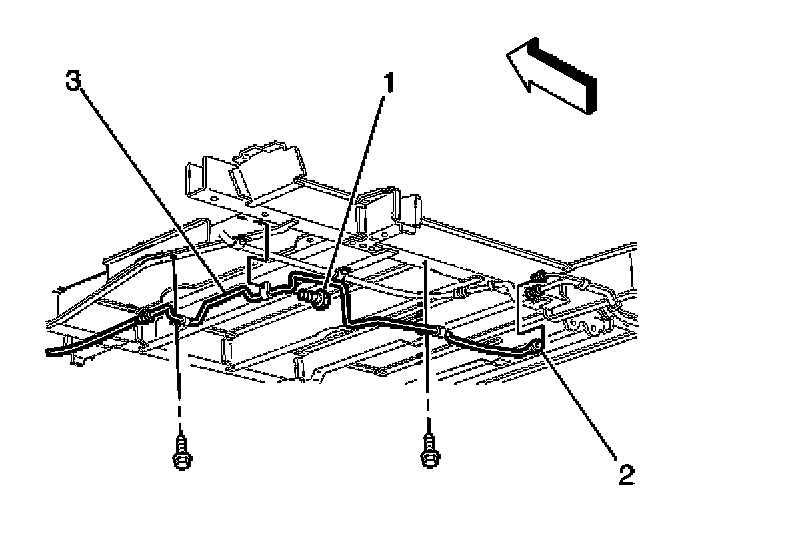

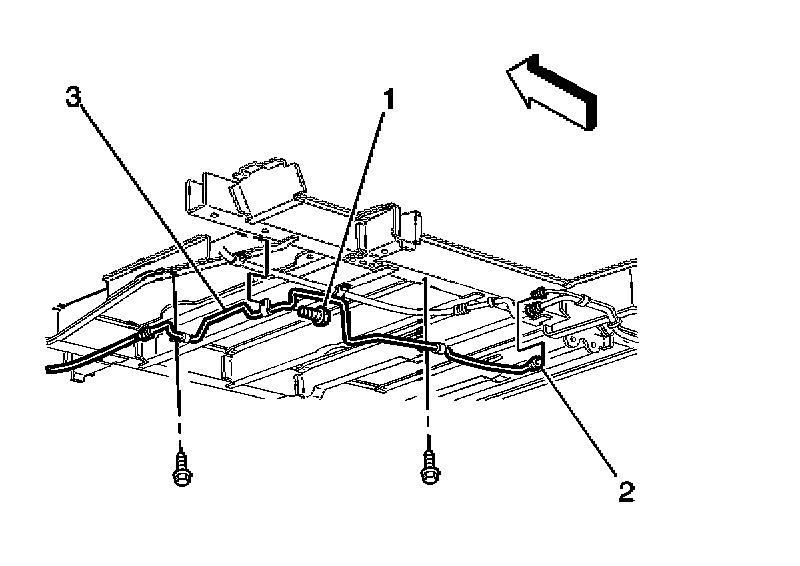

1. Install the auxiliary evaporator outlet side tube (3) to the vehicle.
2. Install the bolts (1) that retain the clips on the outlet side tube (3) to the body.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the bolts to 4 N.m (35 lb in).
3. Install the new O-ring seal. Coat the O-ring seal with 525 viscosity refrigerant oil.

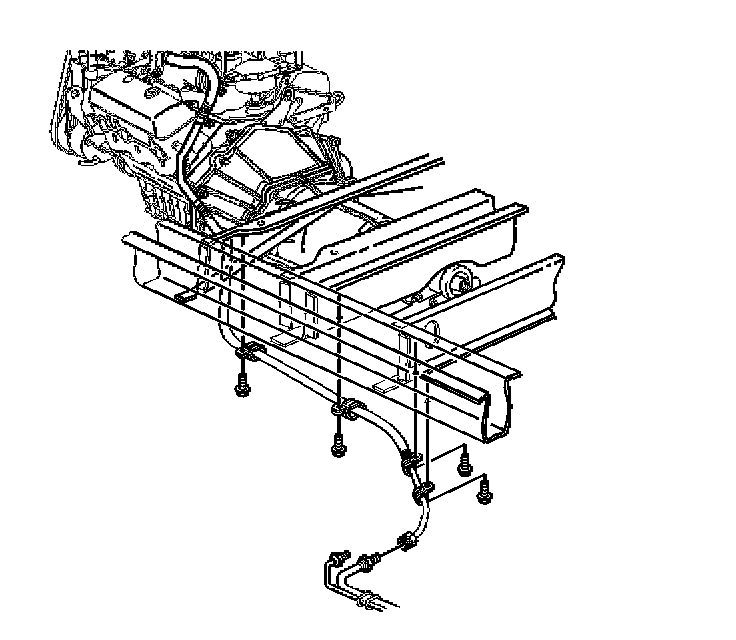

4. Install the auxiliary evaporator outlet side tube to the compressor hose assembly.
Tighten
Tighten the nut to 47.5 N.m (35 lb ft).
5. Install the new O-ring seal.
6. Install the auxiliary evaporator outlet underside body tube (3) to the auxiliary evaporator rear tube.
Tighten
Tighten the nut to 47.5 N.m (35 lb ft).
7. Lower the vehicle.
8. Evacuate and recharge the system.
9. Leak test the fittings of the component using the J 39400-A.
