Air Outlet Duct Replacement - Right Defogger

AIR OUTLET DUCT REPLACEMENT - RIGHT DEFOGGER

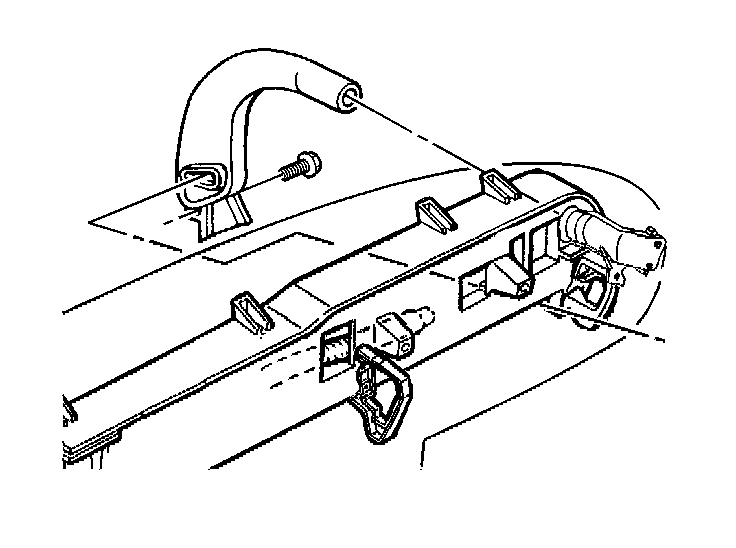

REMOVAL PROCEDURE




1. Roll the instrument panel down.

IMPORTANT: Do not remove the instrument panel.

2. Remove the screws that retain the duct.
3. Remove the duct from the instrument panel.

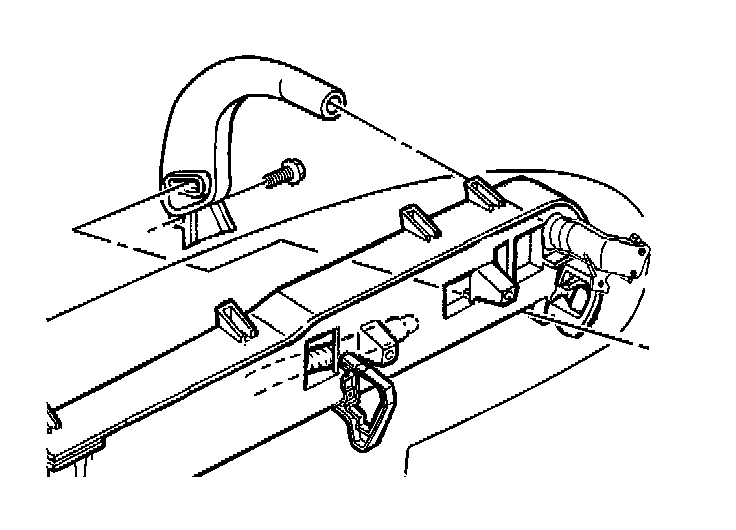

INSTALLATION PROCEDURE




1. Install the duct to the instrument panel.
2. Install the screws in order to retain the duct.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Roll the instrument panel up.
