Engine Mount Replacement - Right

Engine Mount Replacement - Right
Removal Procedure

Notice: Refer to Engine Mounting Notice in Service Precautions.





1. Disconnect the battery negative cable.
2. Raise the vehicle. Refer to Vehicle Lifting.
3. Remove the right front tire.
4. Remove the right fender wheelhouse extension.
5. Remove the starter.

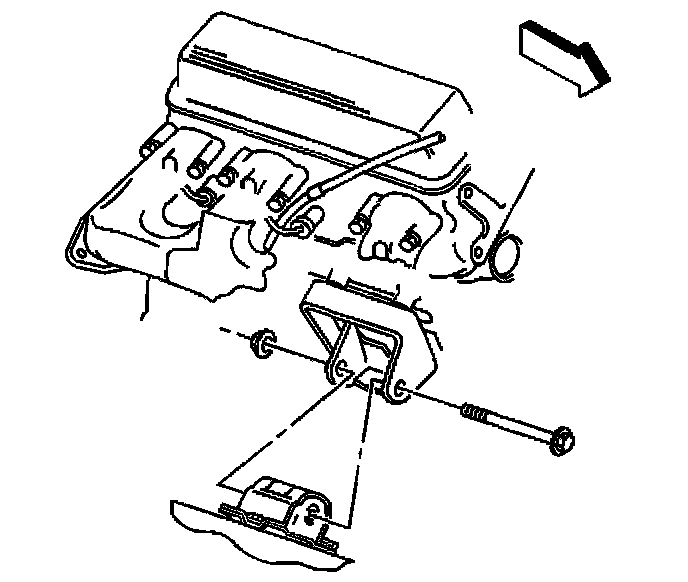

6. Remove the engine mount through-bolt and nut.

Notice: Refer to Engine Lifting Notice in Service Precautions.

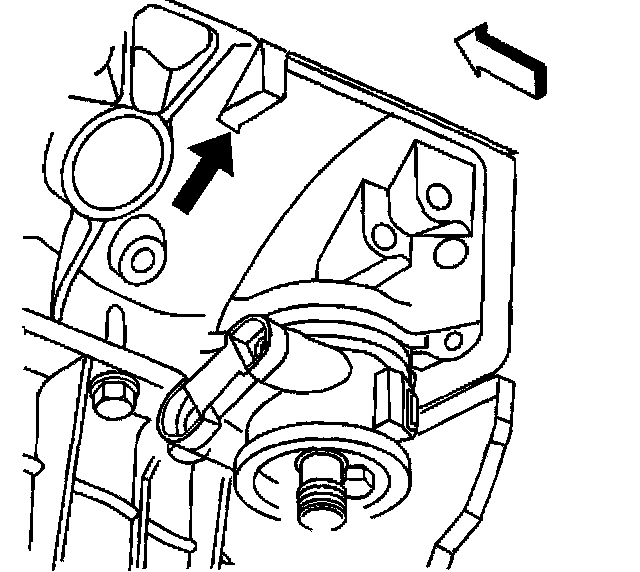

7. Using a jack on the square tab (left side shown) at the rear of the engine block, raise the engine only enough to remove the engine mount.

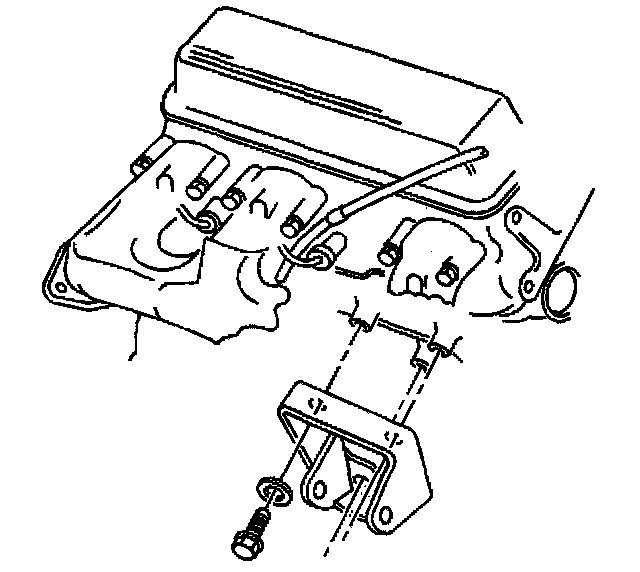

8. Remove the bolts for the engine mount bracket to the engine.
Access the upper two bolts for the right engine mount bracket through the fender wheelhouse.
9. Remove the engine mount bracket.

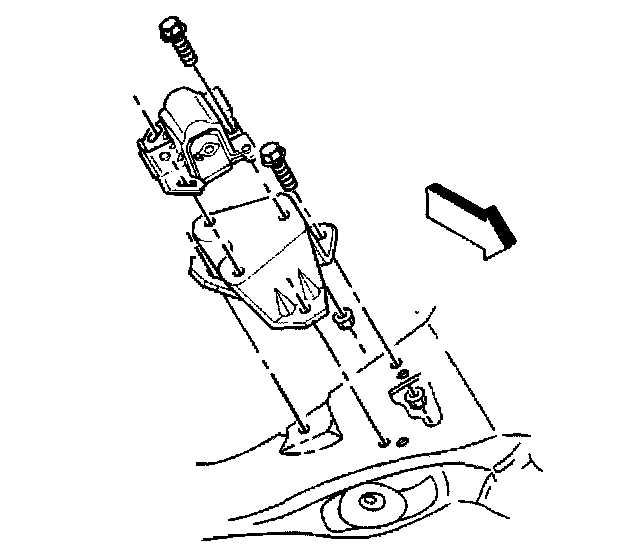

10. For AWD vehicle remove the bolts for the engine mount to the frame (left side shown).
11. Remove the engine mount.

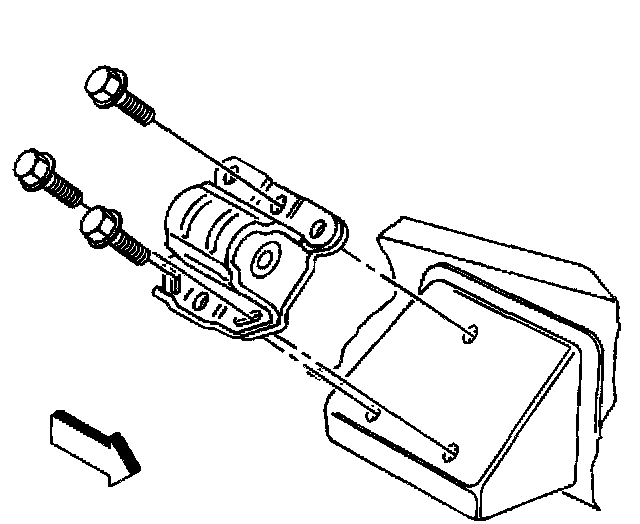

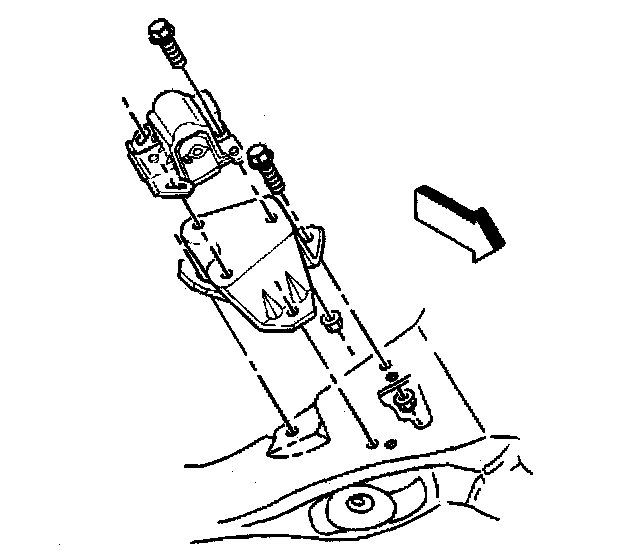

12. For a RWD vehicle right side remove the bolts and the nuts for the engine mount to the frame.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the AWD vehicle engine mount to the frame bolts.
^ Tighten the AWD vehicle engine mount to frame bolts to 59 Nm (44 ft. lbs.).

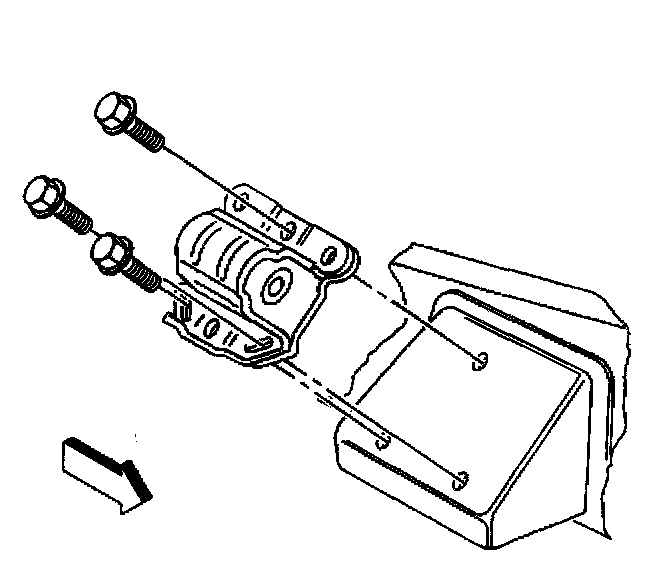

2. Install the RWD vehicle right side engine mount, the bolts, and the nuts to the frame.
^ Tighten the engine mount to frame bolts to 47 Nm (35 ft. lbs.).
^ Tighten the engine mount to frame nuts to 42 Nm (31 ft. lbs.).

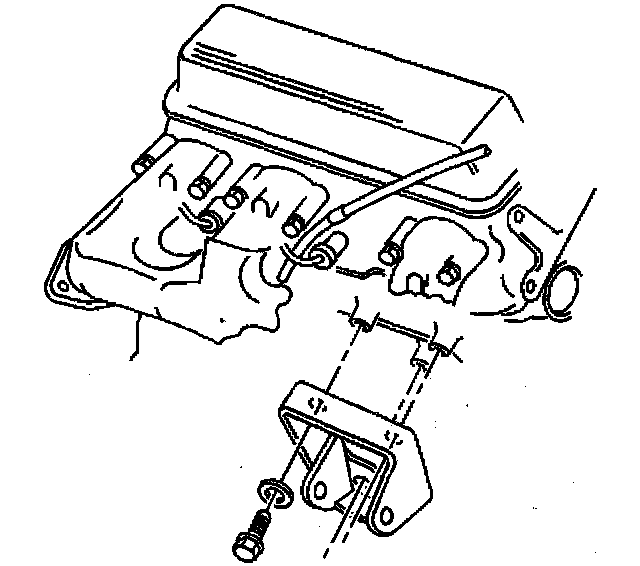

3. Install the engine mount bracket to the engine.
4. Install the engine mount bracket bolts.
^ Tighten the engine mount bracket bolts to 64 Nm (47 ft. lbs.).





5. Lower the engine.

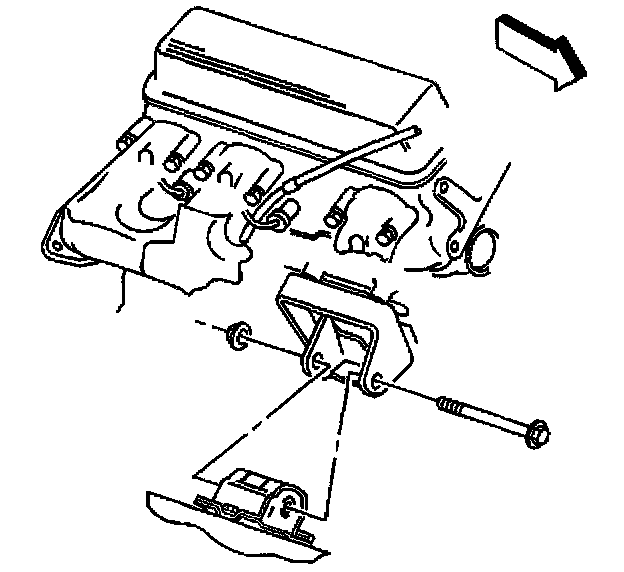

6. Install the engine mount through- bolt and the nut.
^ Tighten the engine mount through-bolt nuts to 68 Nm (50 ft. lbs.).
7. Install the starter.
8. Install the right fender wheelhouse extension.
9. Install the right front tire.
10. Lower the vehicle.
11. Connect the battery negative cable.
