Upper

Fan Shroud Replacement - Upper

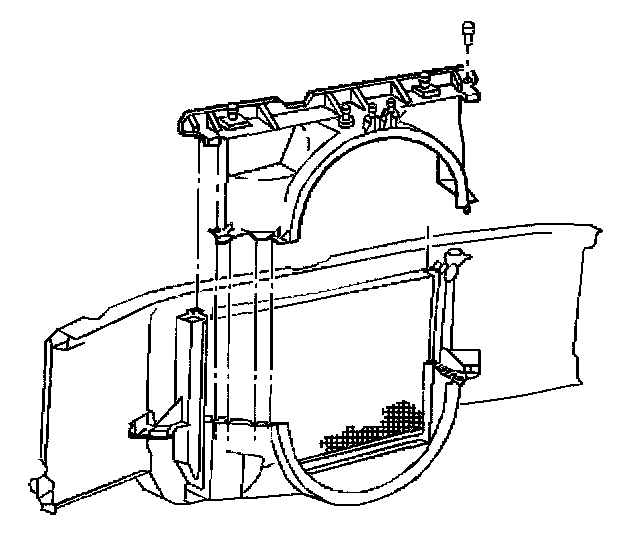

Removal Procedure





1. Remove the air cleaner assembly.
2. Remove the upper fan shroud bolts.
3. Remove the upper fan shroud.

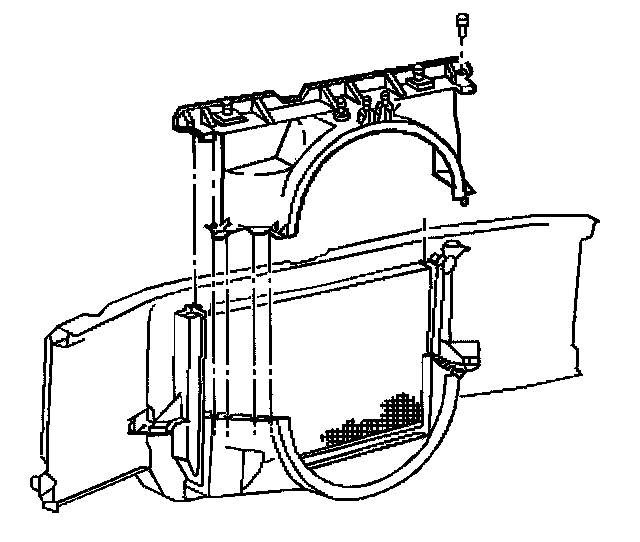

Installation Procedure





1. Install the upper fan shroud.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper shroud bolts.
^ Tighten the bolts to 15 Nm (11 ft. lbs.).
3. Install the air cleaner assembly.
