Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Door Views
Door Views

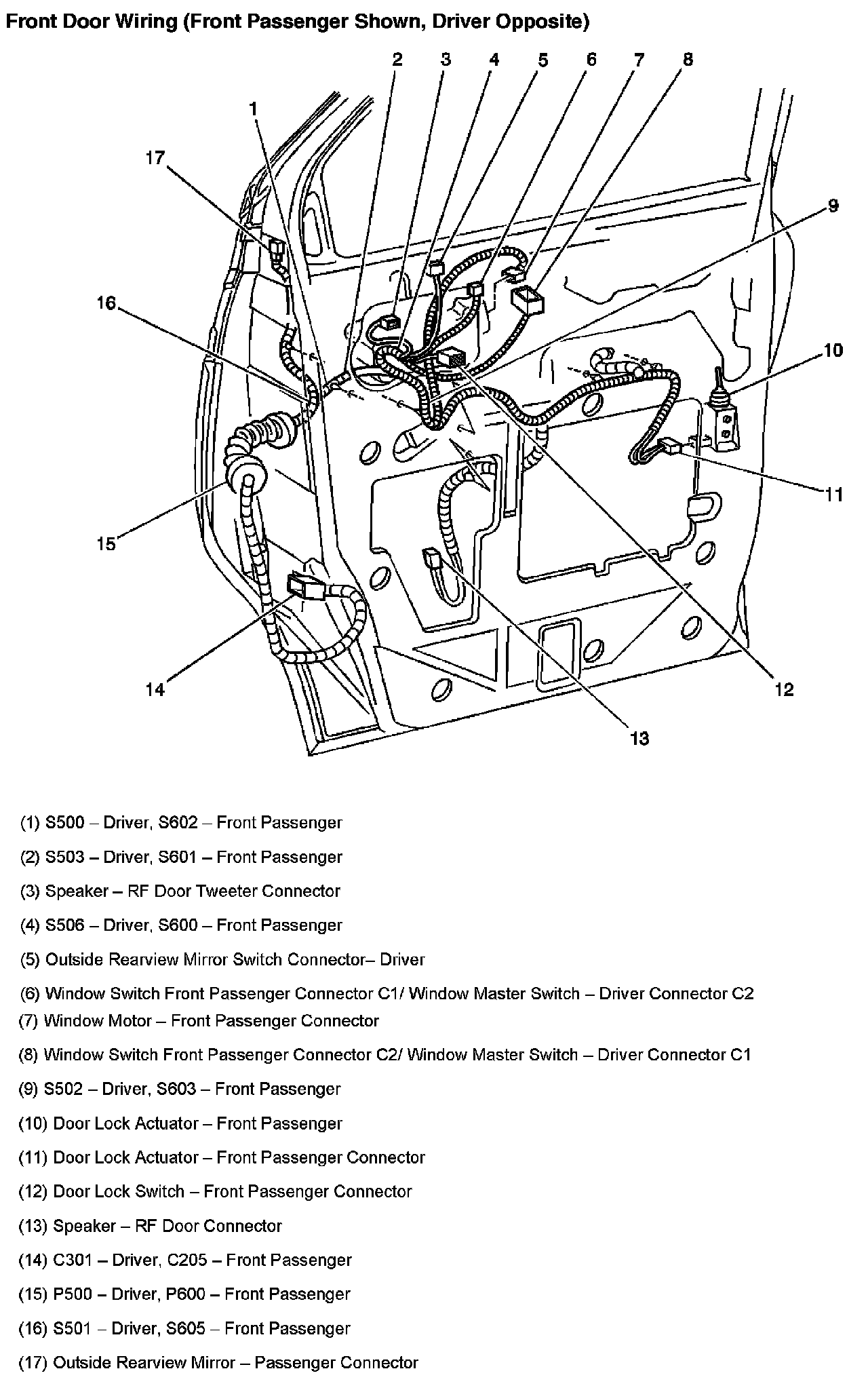

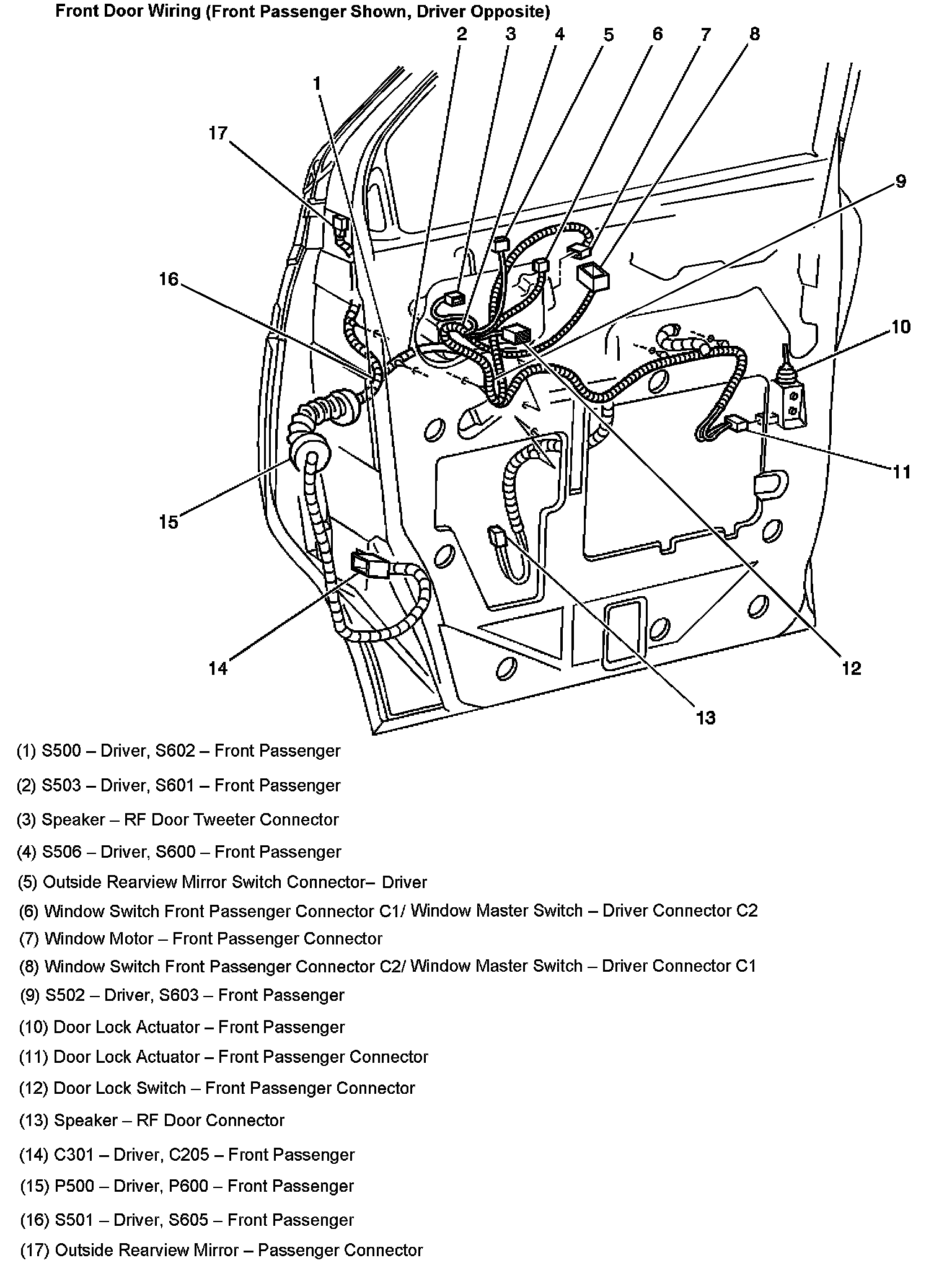

Front Door Wiring (Front Passenger Shown, Driver Opposite):
Front Door Wiring (Front Passenger Shown, Driver Opposite):
