Chevy Truck
>>
2003
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive/Propeller Shaft
>>
One-Piece Propeller Shaft

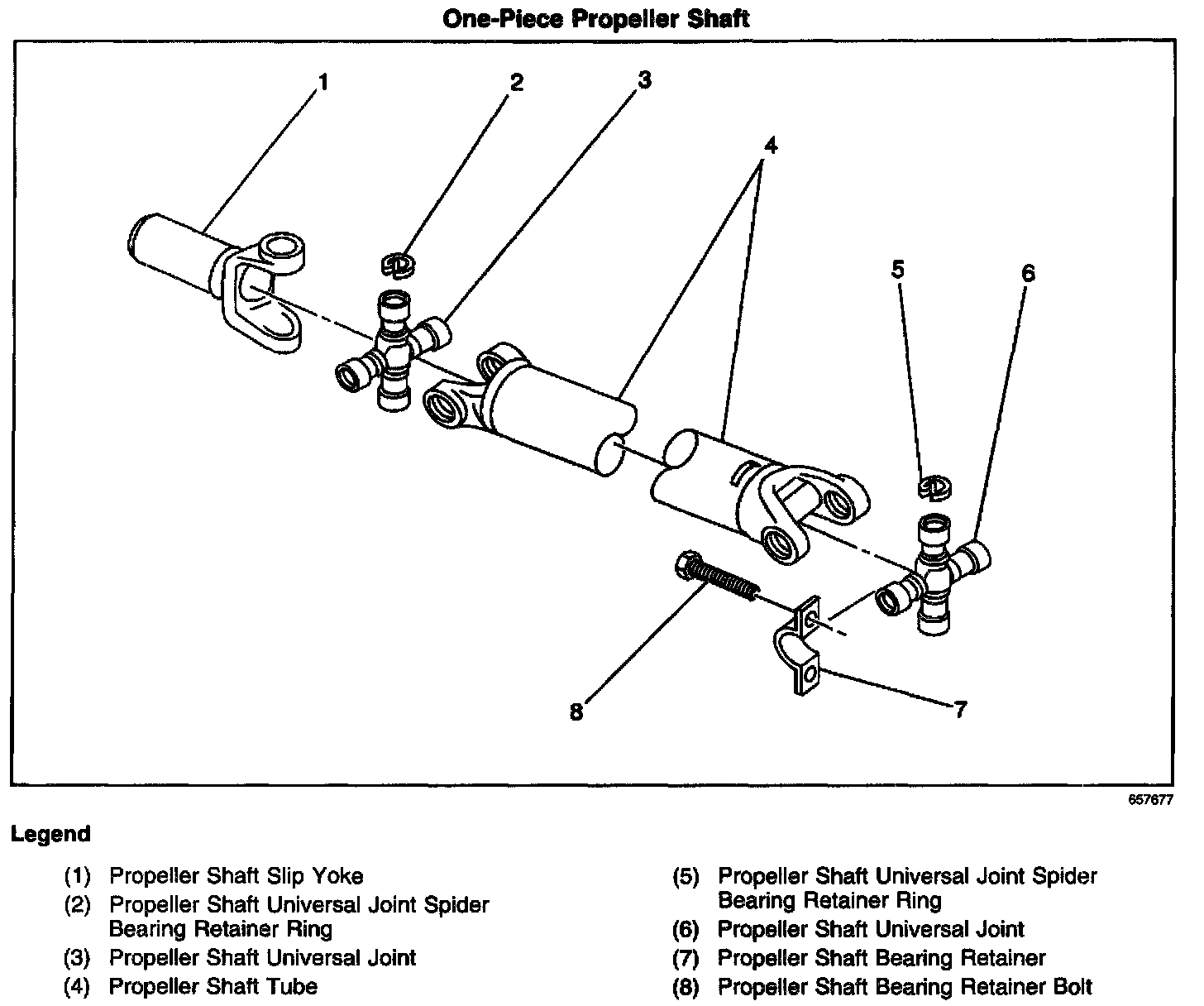

One-Piece Propeller Shaft
Locations View:
