Chevy Truck
>>
2003
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

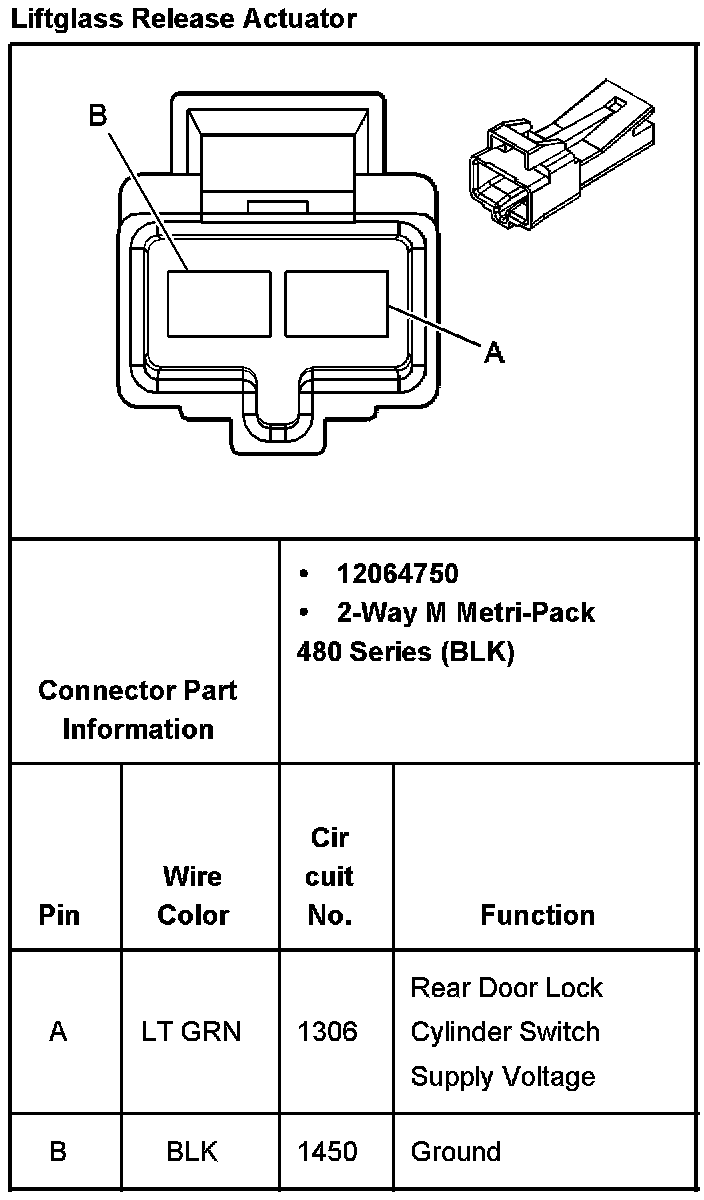

Liftglass Release Actuator:
