Chevy Truck
>>
2003
>>
Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Solenoid, A/T
>>

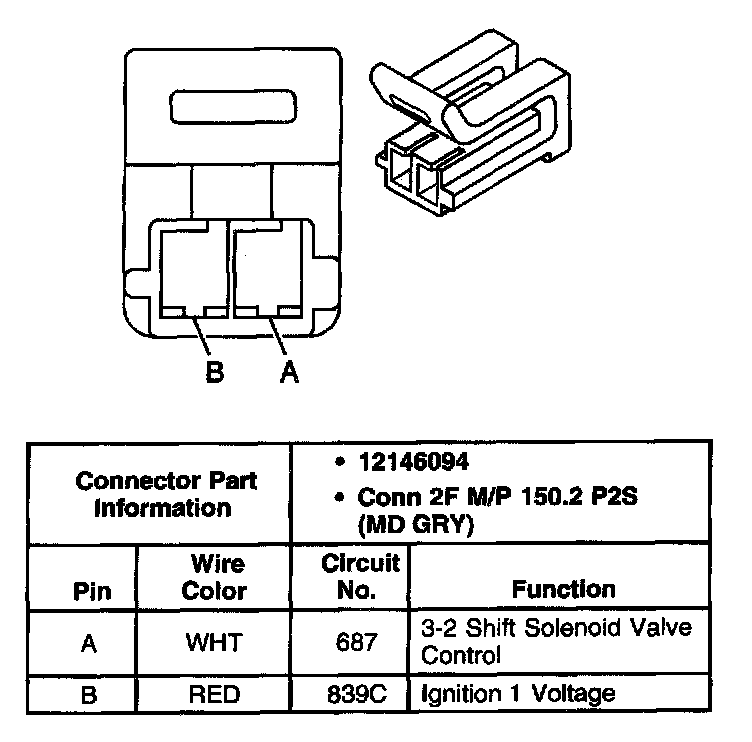

3-2 (SS) Valve Assembly Connector, Wiring Harness Side
3-2 (SS) Valve Assembly Connector, Wiring Harness Side
