Park Brake Cable Guide - Replacement

Park Brake Cable Guide Replacement

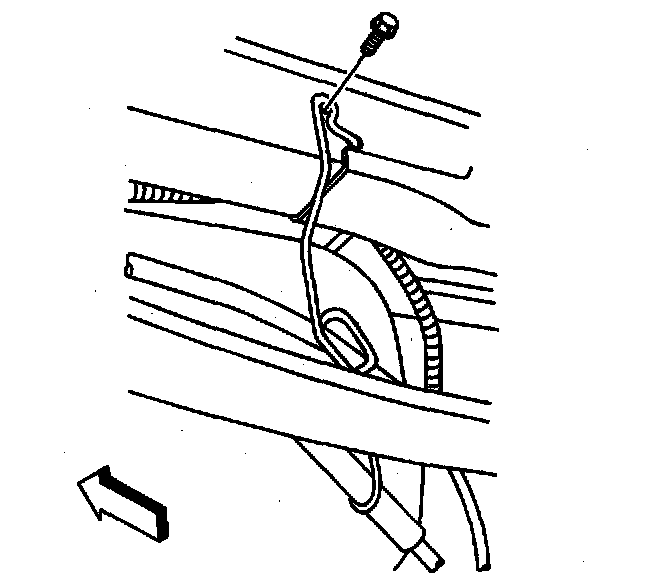

Removal Procedure
1. Release the parking brake.
2. Raise and support the vehicle.







3. Remove the park brake cable guide bolt from the frame.
4. Remove the park brake cable guide.
5. Remove the park brake guide from the park brake cable.

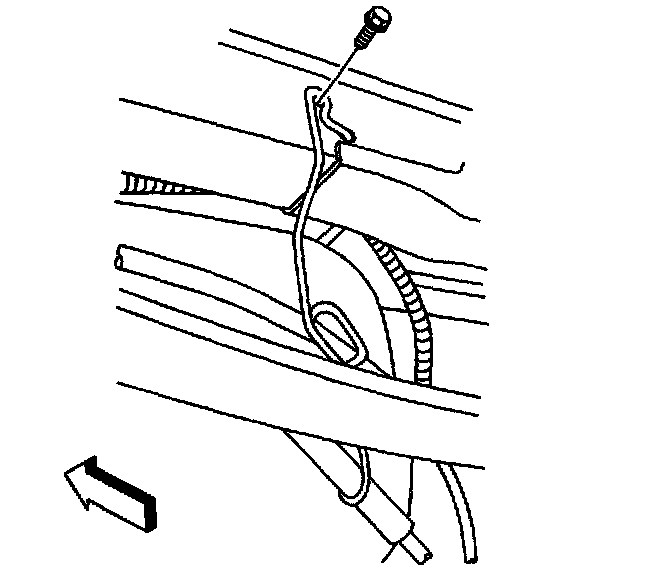

Installation Procedure
1. Install the park brake cable guide to the park brake cable.
2. Install the park brake cable guide.

Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice







3. Install the park brake cable guide bolt to the frame.
Tighten the bolt to 13 Nm (115 inch lbs.).

4. Remove the safety stands and lower the vehicle.
