Front

Park Brake Cable Replacement- Front
Removal Procedure
1. Release the park brake.
2. Remove the cowl side panel trim.
3. Remove the step trim plate.
4. Remove the park brake pedal.
5. Raise and support the vehicle.
6. Loosen the park brake cable at the adjuster.







7. Remove the front park brake cable from the park brake cable adjuster.

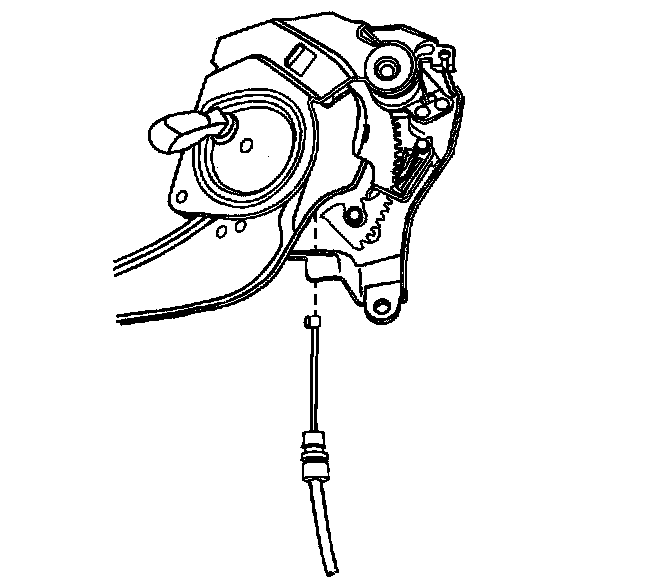

8. Remove the front cable from the pedal assembly.
9. Lower the vehicle.

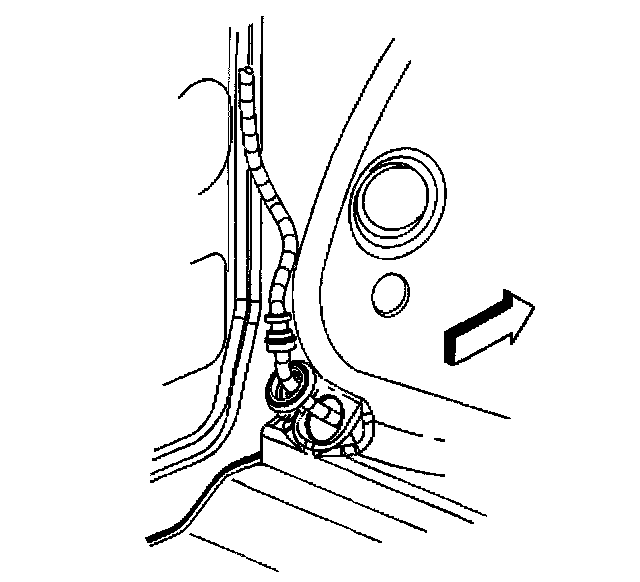

10. Roll the carpet back to remove the cable and grommet from the body.
11. Remove the cable from the vehicle.


Installation Procedure







1. Install the cable.

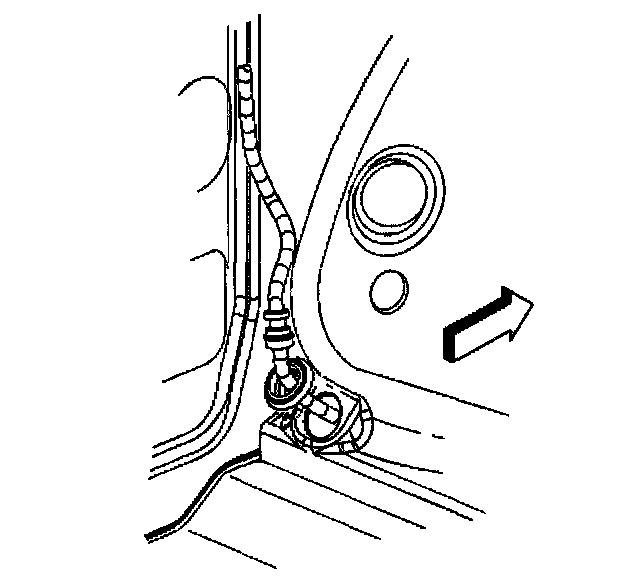

2. Route the cable through the floor pan and engage the grommet.







3. Install the front cable to the pedal assembly.
4. Install the pedal assembly.
5. Roll the carpet into place.
6. Install the step trim plate.
7. Install the cowl side panel trim.
8. Raise the vehicle.
9. Connect the front cable to the park brake cable adjuster.
10. Adjust the park brake system.
11. Remove the safety stands and lower the vehicle.
