Sealing Strip Replacement - Outer Belt

Sealing Strip Replacement - Outer Belt

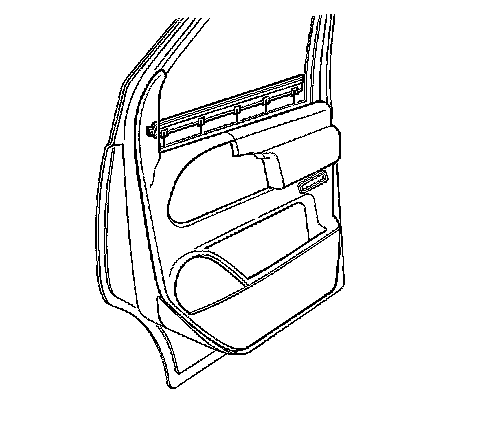

Removal Procedure

1. Roll the window down.
2. Remove the trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .




3. Remove the outer sealing strip from the door frame.



Installation Procedure





1. Install the outer sealing strip to the door frame.
2. Install the trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .
