Seat Back Frame Replacement - Rear With RPO Codes YC5 and YC6

SEAT BACK FRAME REPLACEMENT - REAR WITH RPO CODES YC5 AND YC6

REMOVAL PROCEDURE
1. Remove the bench seat from the vehicle.
2. Remove the seat back cover and pad.

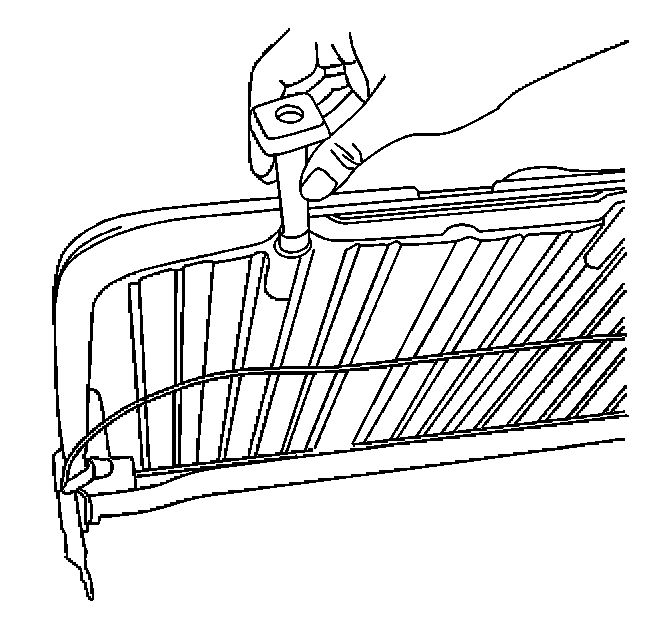

3. Remove the headrest bushing.
4. Remove the rear seat latch release cable.

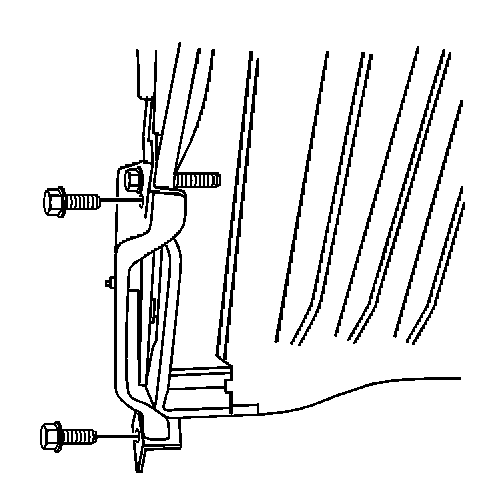

5. Remove the right and left seat back frame hinge bolts.




6. Remove the seat back frame.

INSTALLATION PROCEDURE




1. Install the seat back frame.

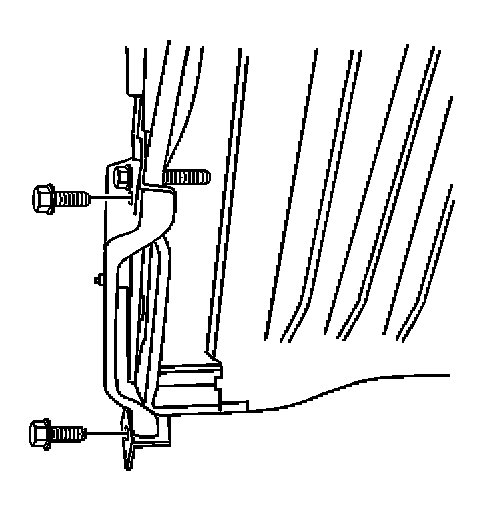

2. Install the right and left seat back frame hinge bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the right and left seat back frame hinge bolts to 30 N.m (22 lb ft).

3. Install the rear seat latch release cable.
4. Install the headrest bushing.
5. Install the seat back cover and pad.
6. Install the bench seat to the vehicle.
