Console: Description and Operation

Overhead Console Description

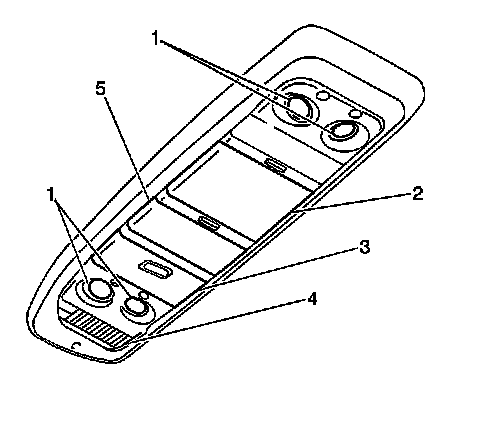

The overhead console is a convenience package that contains the following components:

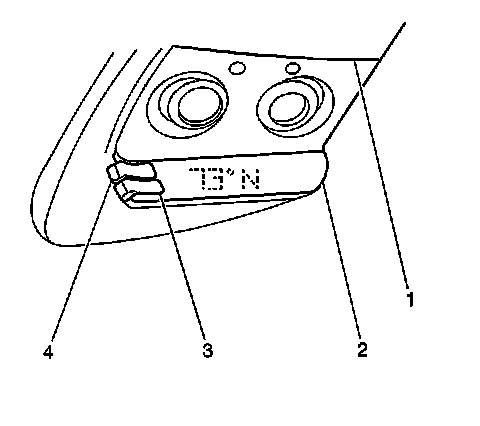

* A digital display (4) that provides:

* The outside temperature
* Eight primary compass readings indicating the direction the vehicle is travelling

* Two switches (3) including:

* An ON/OFF switch for the temperature/compass display
* A U.S./METRIC switch that changes the temperature readout from degrees Fahrenheit (F) to degrees Celsius (C)





* Two pivoting courtesy/map lamps (1)

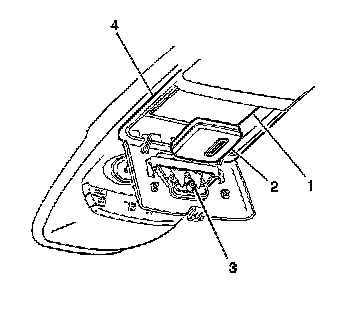

* A compartment (4) for a garage door opener with a transmitter (2) that can be activated by pressing the button (3) on the compartment door.
* A compartment for storing sunglasses
* A compartment for storing compact discs or tapes


For more information on the overhead console, refer to Driver Information Center (DIC) Description and Operation Description and Operation in Instrument Panel, Gages and Console.
