Cladding Replacement - Right Quarter Panel

Cladding Replacement - Right Quarter Panel

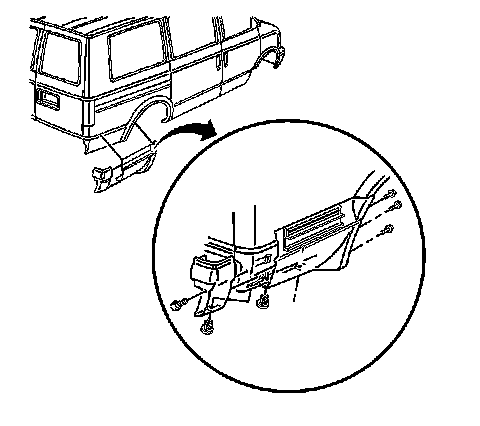

Removal Procedure





1. Remove the rear corner extension molding retainers.
2. Remove the rear corner extension molding.
3. Remove the cladding screws.
4. Remove the cladding retainers.
5. Remove the cladding from the body. Refer to Cladding Replacement - Adhesive Retained (Cladding Replacement - Adhesive Retained) .



Installation Procedure

1. Install the cladding to the body. Refer to Cladding Replacement - Adhesive Retained (Cladding Replacement - Adhesive Retained) .

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the cladding screws.

Tighten the cladding screws to 2 N.m (18 lb in).

3. Install the cladding retainers.
4. Install the rear corner extension molding.




5. Install the rear corner extension molding retainers.
