Fuel Filler Door Replacement

FUEL FILLER DOOR REPLACEMENT

REMOVAL PROCEDURE

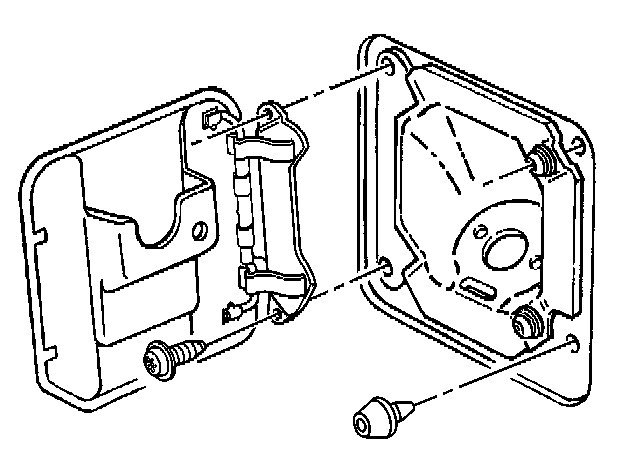

1. Remove the screws that retain the fuel filler door.




2. Remove the fuel filler door.

INSTALLATION PROCEDURE




1. Install the fuel filler door.
2. Install the screws that retain the fuel filler door.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws that retain the fuel filler door to 2 N.m (18 lb in).
