Speaker Replacement - Front Lower

SPEAKER REPLACEMENT - FRONT LOWER

REMOVAL PROCEDURE

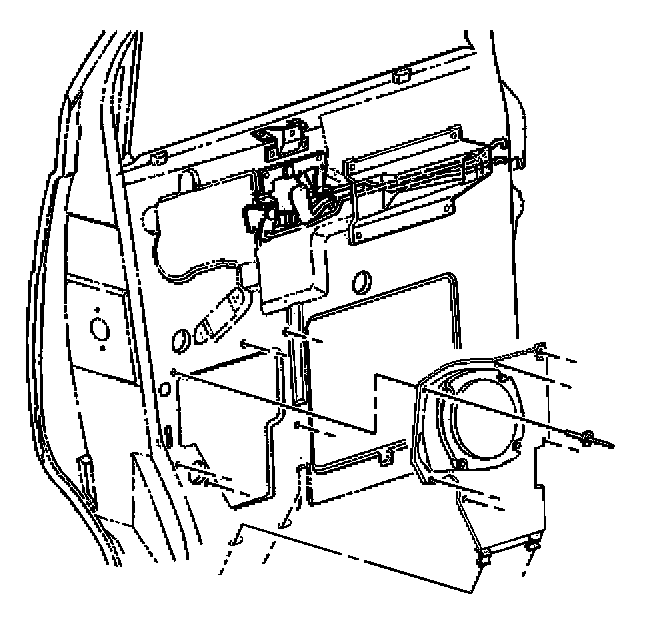

1. Remove the door trim panel.




2. Remove the mounting screws.
3. Remove the speaker from the door.
4. Disconnect the electrical connector from the speaker.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the speaker.
2. Install the speaker to the door.
3. Install the speaker mounting screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the speaker mounting screws to 2 N.m (18 lb in).

4. Verify component operation.
5. Install the door trim panel.
