Blower Motor Resistor Replacement - Auxiliary A/C

BLOWER MOTOR RESISTOR REPLACEMENT - AUXILIARY AIR CONDITIONING(A/C)

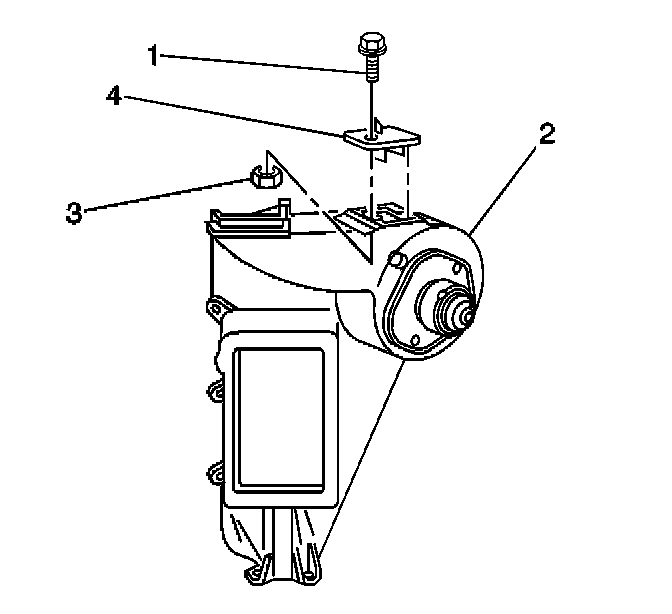

REMOVAL PROCEDURE




1. Remove the left body side trim panel.
2. Remove the electrical connector.
3. Remove the screws that retain the resistor (4) to the case.
4. Remove the auxiliary A/C blower motor resistor assembly from the case.

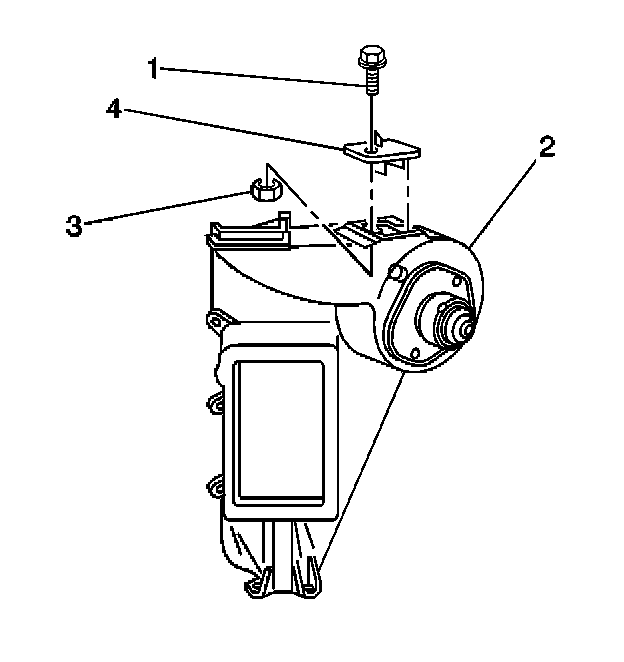

INSTALLATION PROCEDURE




1. Install the auxiliary A/C blower motor resistor assembly into the case.
2. Install the screws that retain the resistor to the case.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the electrical connector.
4. Install the left body side rear trim panel.
