Wiper/Washer Switch and Washer Fluid Level Switch
Wiper/Washer Switch and Washer Fluid Level Switch

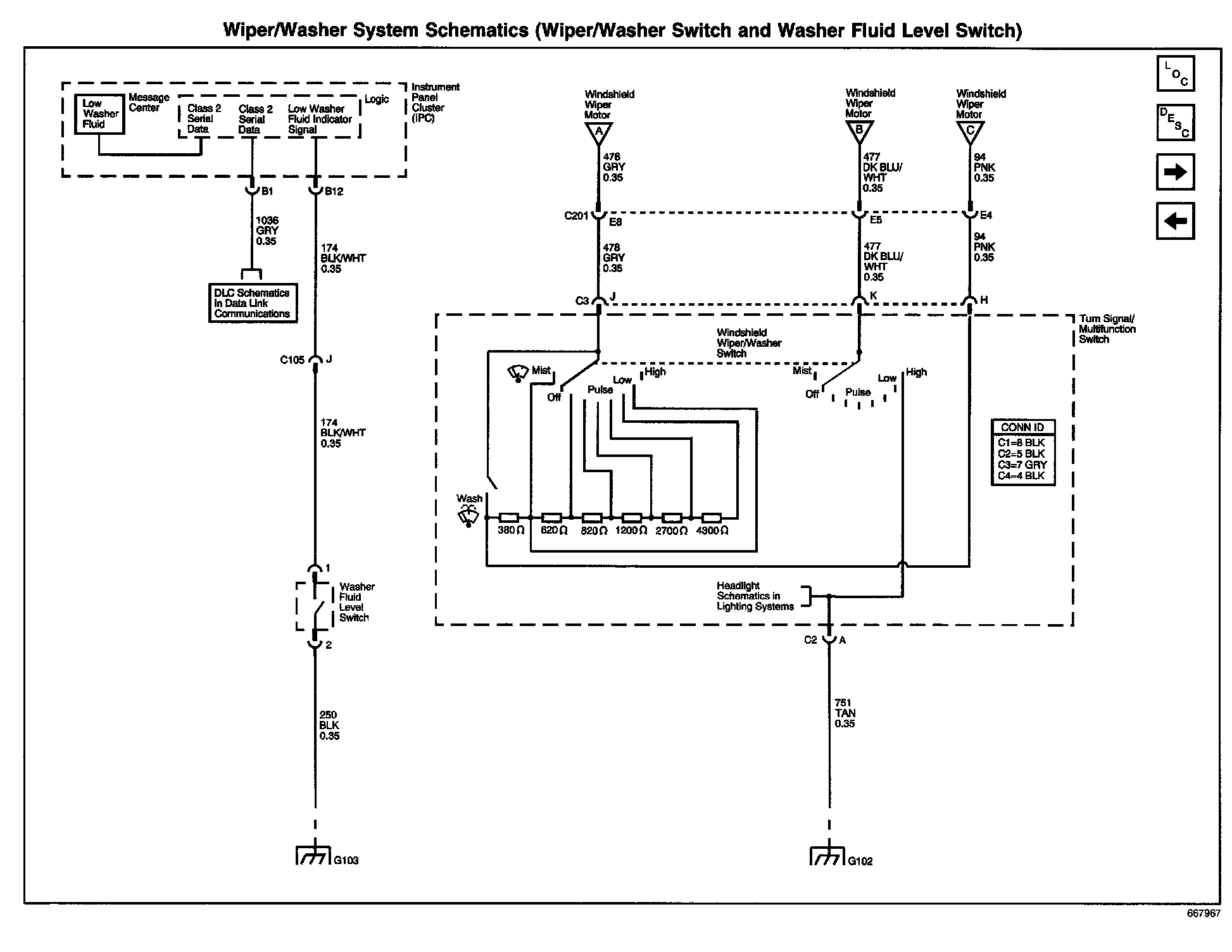

Wiper/Washer System Schematics: Wiper/Washer Switch And Washer Fluid Level Switch:
