Lower Anchor Assembly Replacement - Rear No.1

REMOVAL PROCEDURE




1. Remove the seat from the vehicle.
2. Remove the trim panel from the seat cushion.

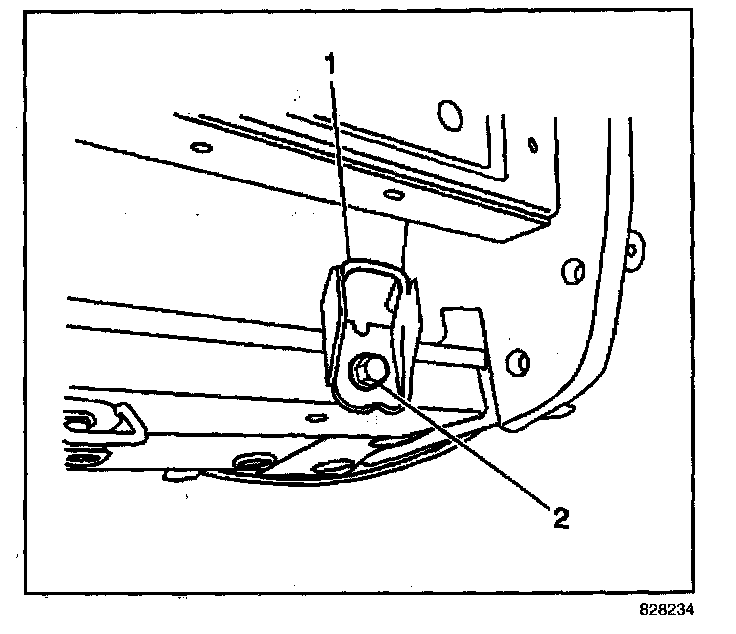

3. Remove the bolt (2) securing the lower anchor (1) to the seat cushion frame.
4. Remove the lower anchor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

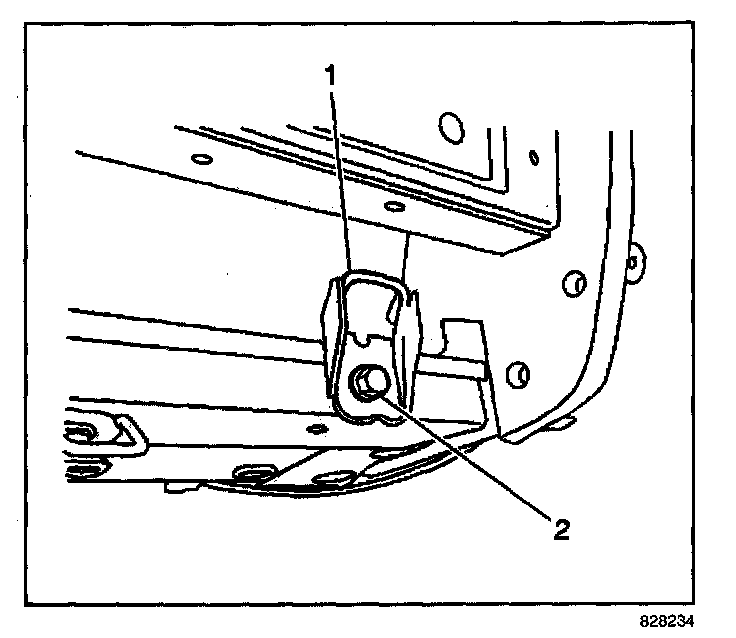

1. Install the rear seat lower anchor to the seat cushion frame with the bolt (2).

Tighten
Tighten the rear seat lower anchor bolt to 35 N.m (26 lb ft).

2. Install the trim panel to the seat cushion.
3. Install the seat in the vehicle.
