Trailblazer EXT, Envoy XL

REMOVAL PROCEDURE




1. Fold and tumble the right rear seat to a cargo position.
2. Leaving the electrical connectors attached, remove the communication interface module from the Vehicle Communication Interface Module (VCIM) bracket. Refer to Communication Interface Module Replacement (Trailblazer, Envoy, Bravada) or Communication Interface Module Replacement (Trailblazer EXT, Envoy XL) in Interior Trim.

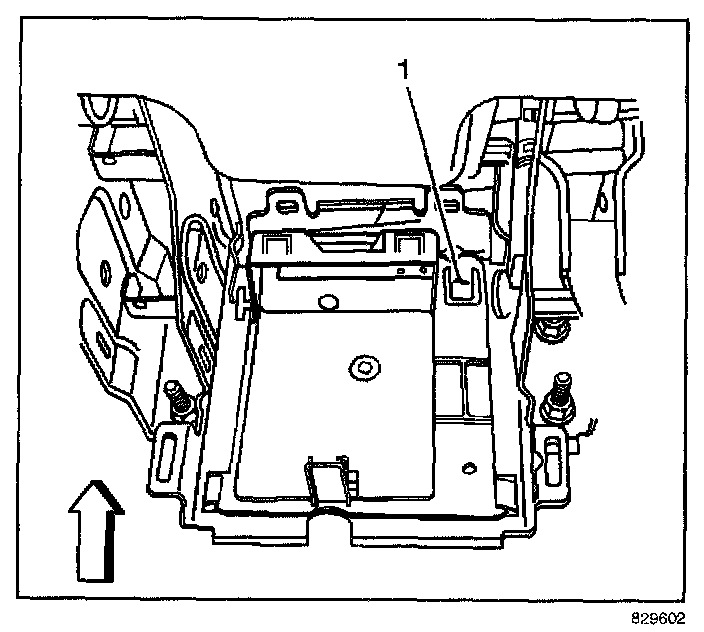

3. Using a flat bladed tool, release the retaining tab (1) on the VCIM bracket.

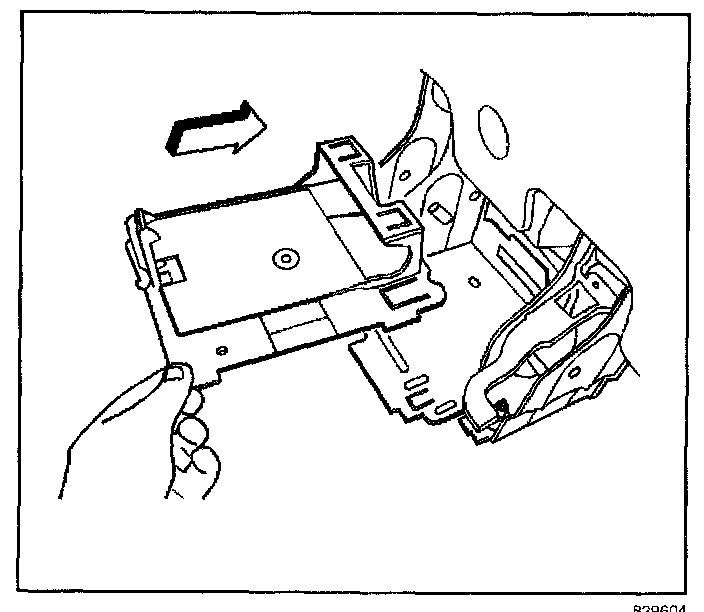

4. Slide the VCIM bracket rearward until the retaining tabs are released from the seat bracket.
5. Remove the VCIM bracket from vehicle.




6. Slide the VCIM bracket rearward until the retaining tabs are released from the seat bracket.
7. Remove the VCIM bracket from vehicle.

INSTALLATION PROCEDURE




1. Position the VCIM bracket to the seat bracket.
2. Slide the VCIM bracket forward until the retaining tabs become locked to the seat bracket.




3. Ensure the retaining tab (1) on the VCIM bracket is properly seated.
4. Install the communication interface module.
5. Position the right second row seat to a passenger position.
