Air Cleaner Outlet Resonator Replacement

REMOVAL PROCEDURE




1. Disconnect the air cleaner outlet duct.

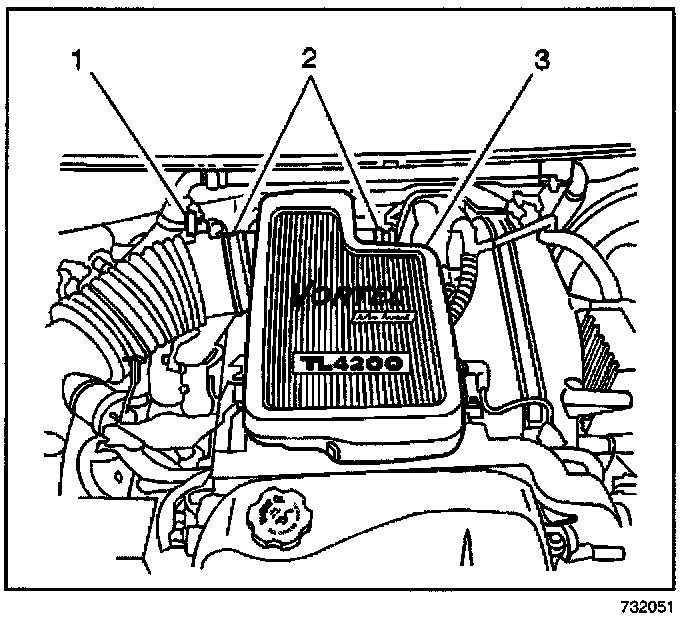

2. Loosen the throttle body clamp (1).
3. Disconnect the fuel pressure regulator vacuum supply from the resonator.




4. Remove the resonator to engine bolts (4) from the resonator.
5. Disconnect the crankcase ventilation hose (1) from the port (2).
6. Remove the resonator assembly from the engine.

INSTALLATION PROCEDURE




1. Install the resonator assembly to the engine making sure that the crankcase ventilation hose (1) is connected to the port (2).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the resonator to engine bolts (4).

Tighten
Tighten the resonator to engine bolts to 6 N.m (53 lb in).




3. Install the air cleaner outlet duct to the resonator.
4. Make sure the resonator is properly fit to the throttle body assembly.

Tighten
Tighten the throttle body clamp (1) to 4 N.m (35 lb in).

5. Connect the fuel pressure regulator vacuum supply to the resonator.
