EVAP Hoses/Pipes Replacement - Engine/Chassis

REMOVAL PROCEDURE




1. Remove the fuel bundle.

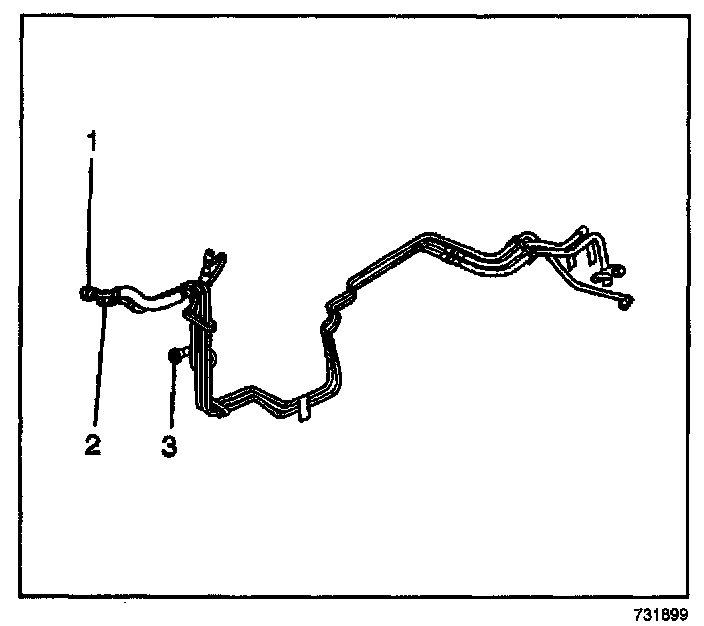

2. Remove the evaporative emission (EVAP) purge pipe (3) from the fuel bundle.

INSTALLATION PROCEDURE




1. Place the new EVAP purge pipe (3) in the fuel bundle.
2. Install the fuel bundle.
