Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) COMPARTMENT LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Open the instrument panel (IP) compartment and release the stop latch in order to lower IP compartment to the full down position.

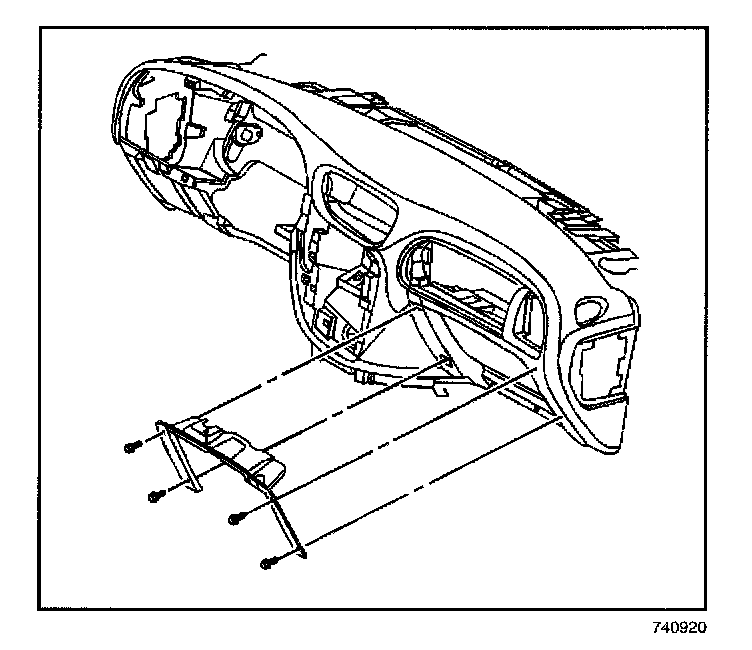

2. Remove the 5 screws that retain the IP compartment jamb trim panel to the Instrument panel (IP).




3. Disconnect the electrical connector to the socket assembly.
4. Remove the trim panel from the IP.

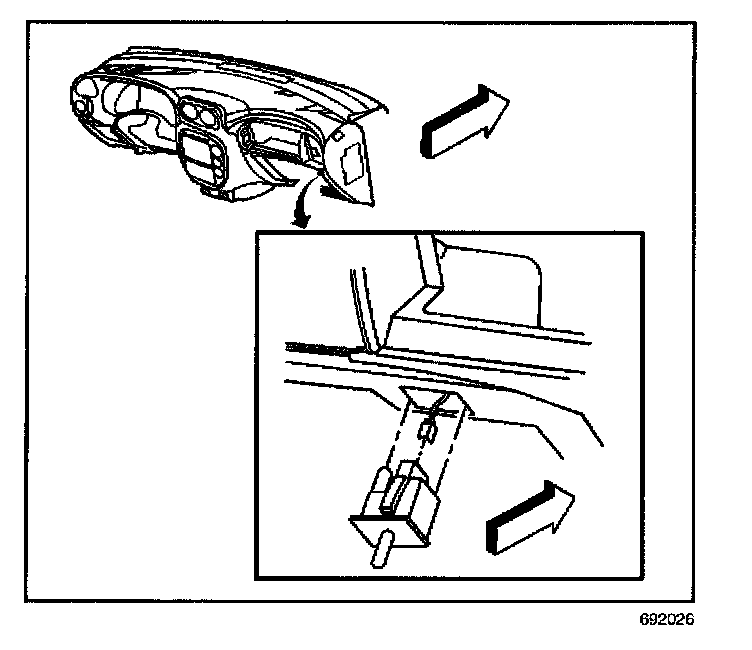

5. Release the socket assembly retaining tabs.
6. Remove the socket assembly from the trim panel.
7. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Install the trim panel to the IP.

NOTE: Refer to Fastener Notice in Service Precautions.

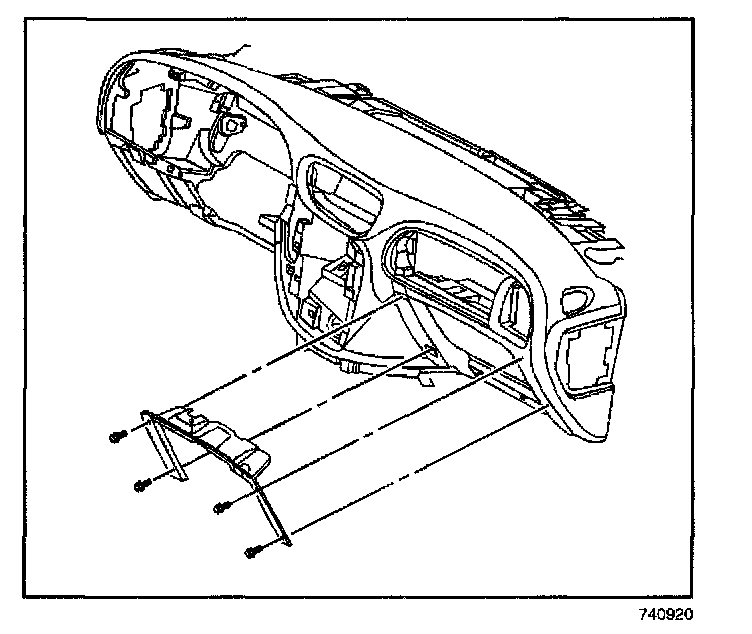

3. Install the 5 screws that retain the IP compartment jamb trim panel to the IP.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).




4. Position the socket assembly to the trim panel and connect the electrical connector.

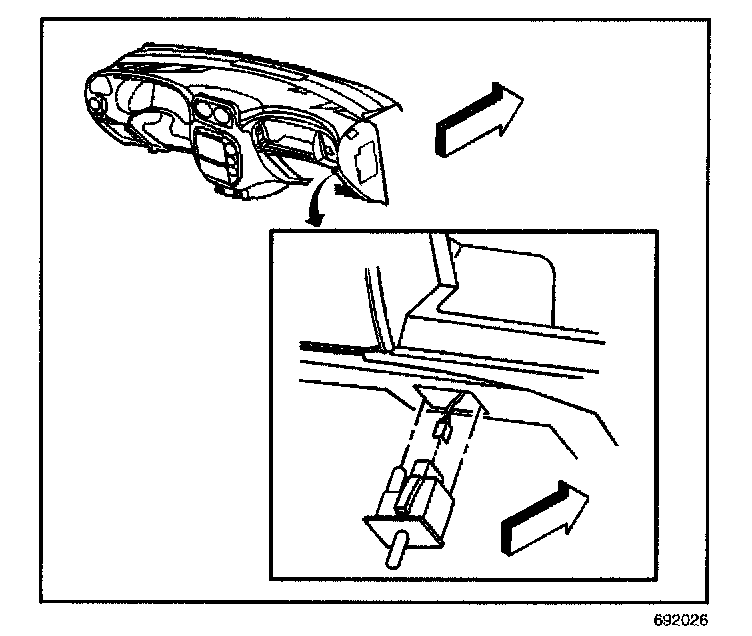

5. Install the socket assembly to the trim panel. Verify that the retaining tabs are fully seated.
6. Close the IP compartment.
