Home >> Chevy Truck >> 2002 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Air Recirculation Malfunction

Air Recirculation Malfunction

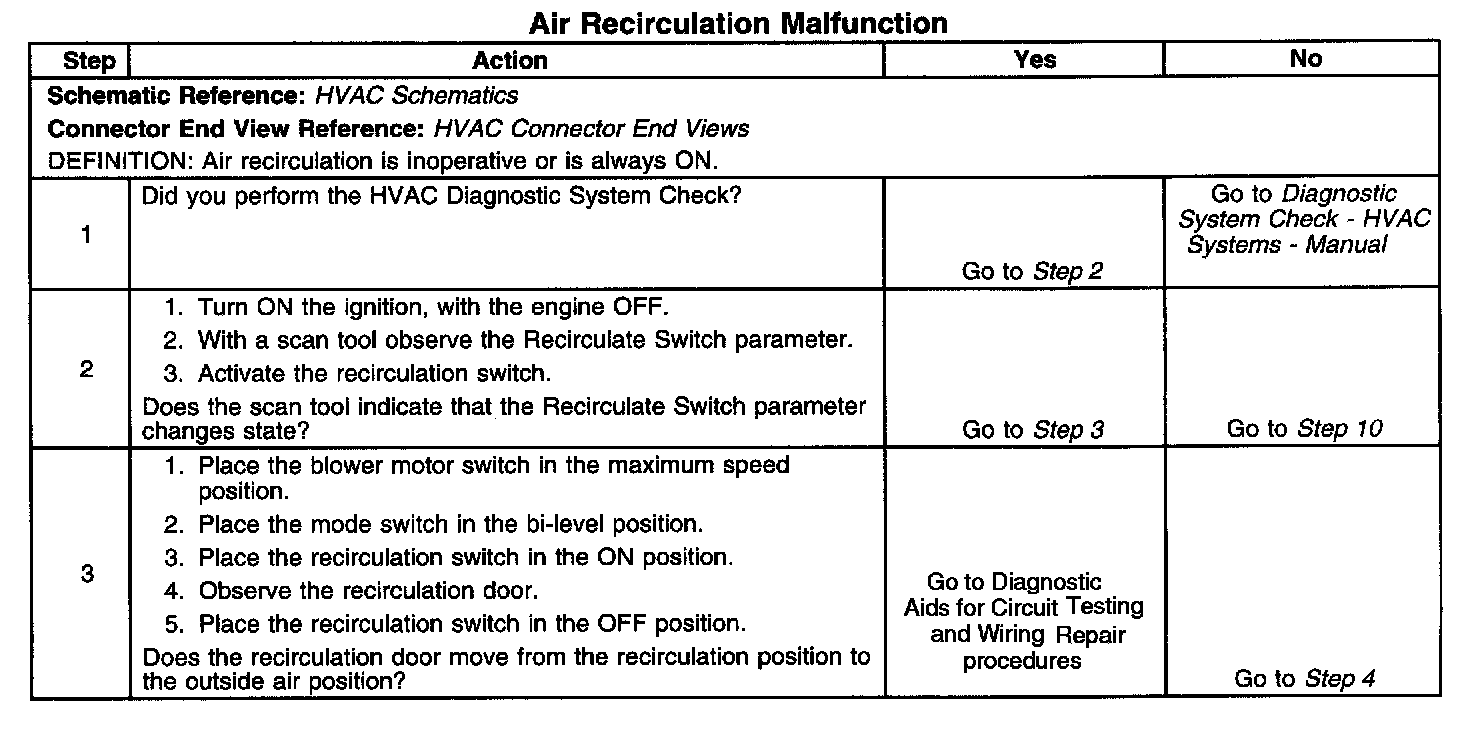

Steps 1-3:

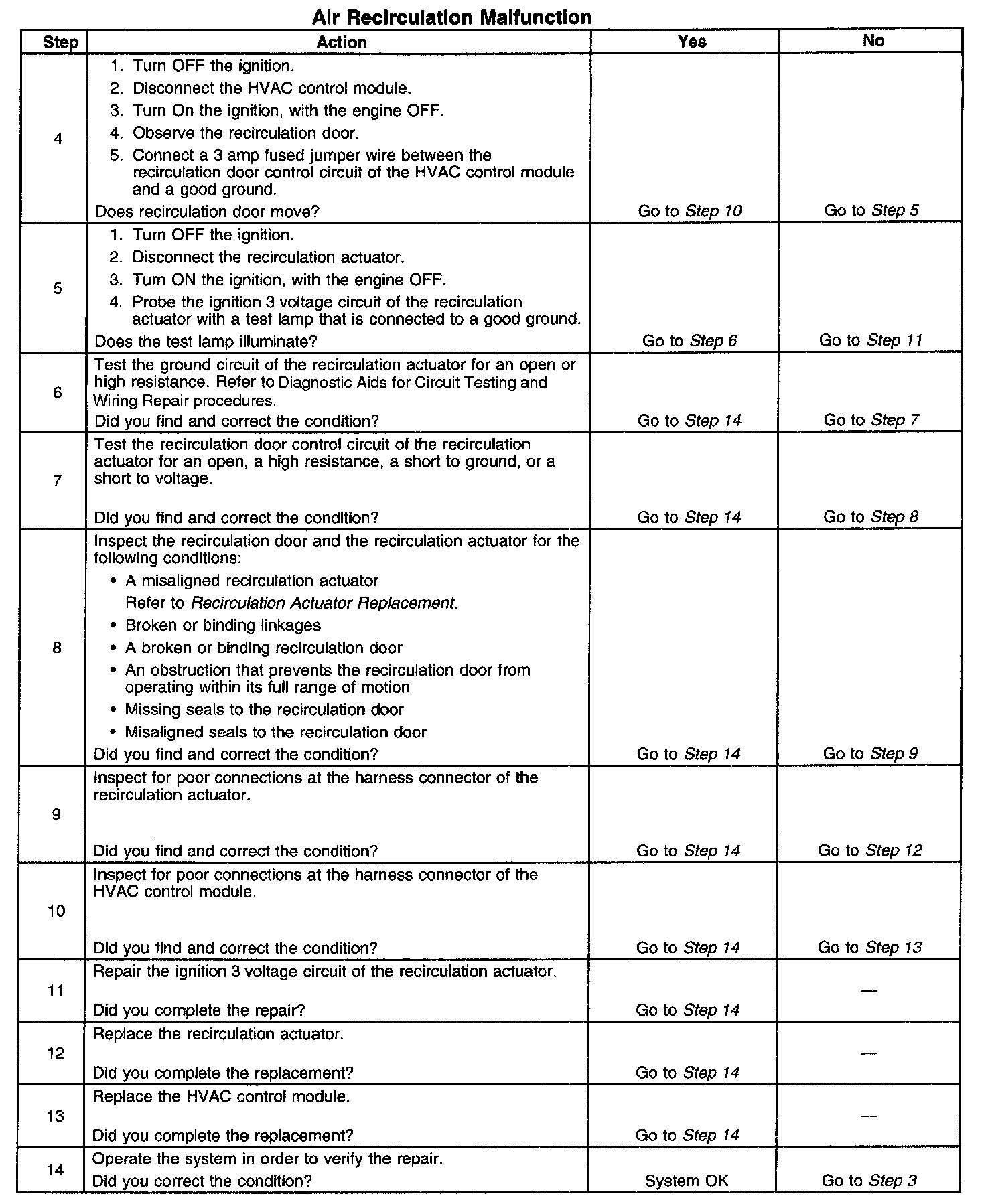

Steps 4-14:
