Heater Core Replacement - Auxiliary

REMOVAL PROCEDURE




1. Remove the HVAC module-auxiliary. HVAC Module Assembly Replacement - Auxiliary

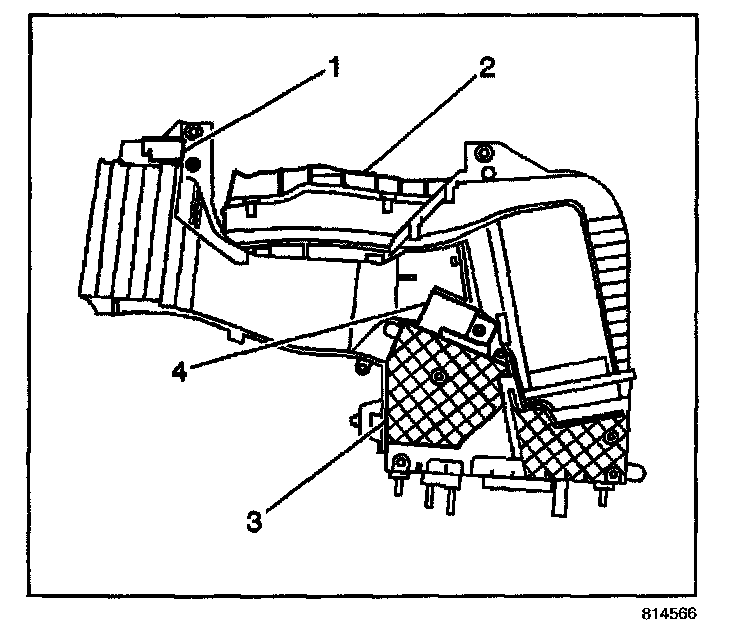

2. Remove the screws from heater core cover-auxiliary (3) from the HVAC module-auxiliary.
3. Remove the heater core cover-auxiliary (3).




4. Remove the HVAC module pass thru seal-auxiliary.

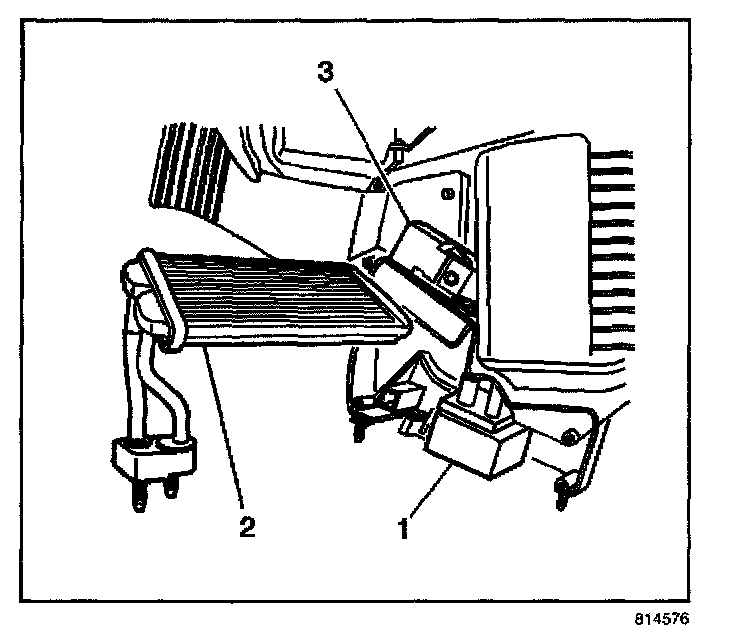

Remove the heater core-auxiliary (2) from the HVAC module-auxiliary.

INSTALLATION PROCEDURE




1. Install the heater core-auxiliary (2) to the HVAC module-auxiliary.
2. Install the HVAC module pass thru seal-auxiliary.





3. Install the heater core access cover-auxiliary (3) to the HVAC module-auxiliary.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the screws to the heater core access cover-auxiliary (3).

Tighten
Tighten the screws to 2 N.m (18 lb in).

5. Install the rear HVAC module-auxiliary. HVAC Module Assembly Replacement - Auxiliary
