Air Outlet Replacement - Rear Floor

REMOVAL PROCEDURE




1. Remove the console support bracket.

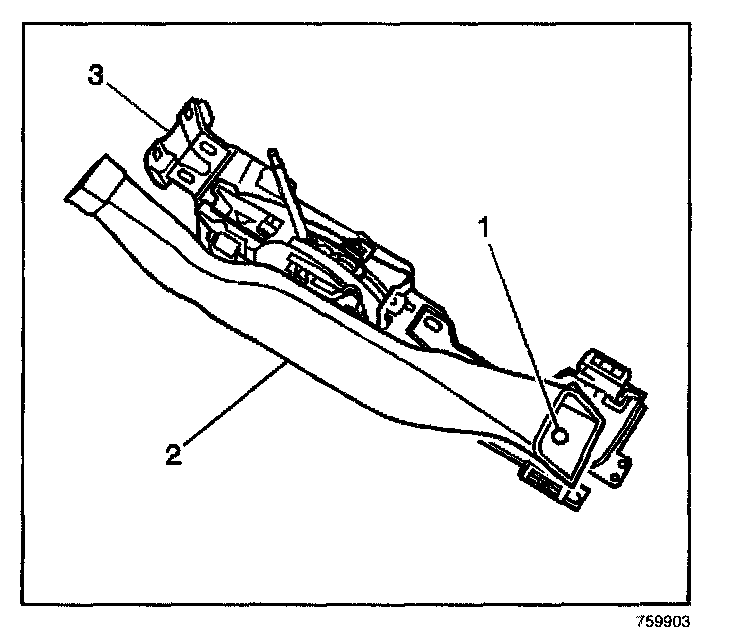

2. Remove the push pin (1).

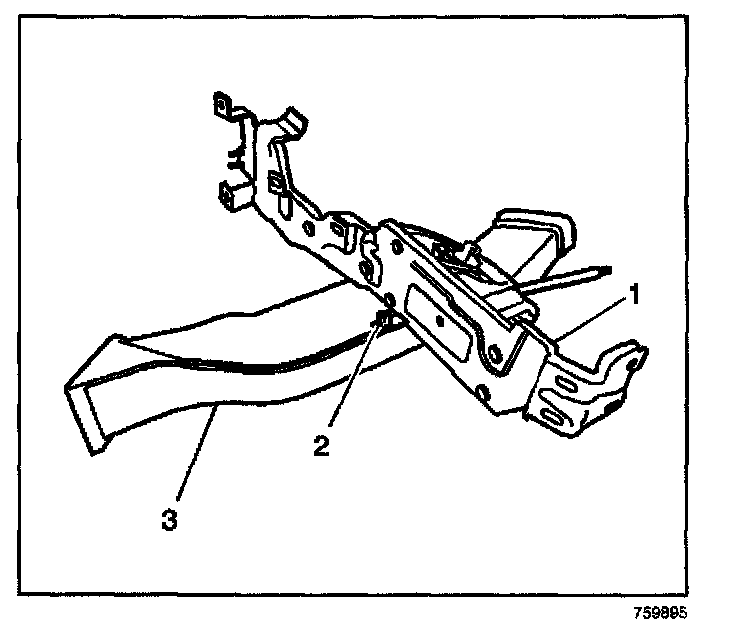

3. Rotate the air outlet duct-rear (3) to remove from the console support bracket (1).
4. Remove the air outlet duct-rear from the vehicle.

INSTALLATION PROCEDURE




1. Install the air outlet duct-rear (3) to the console support bracket (1).

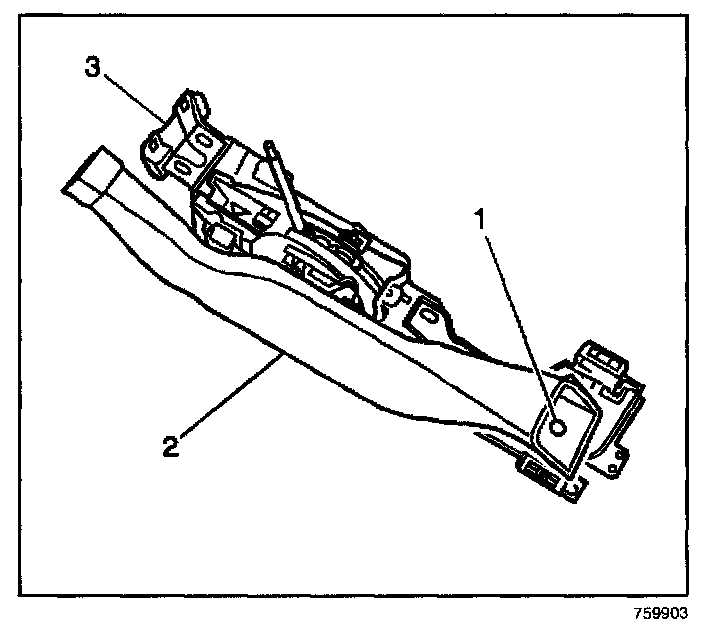

2. Install the push pin (1).
3. install the console support bracket.
