88. Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation

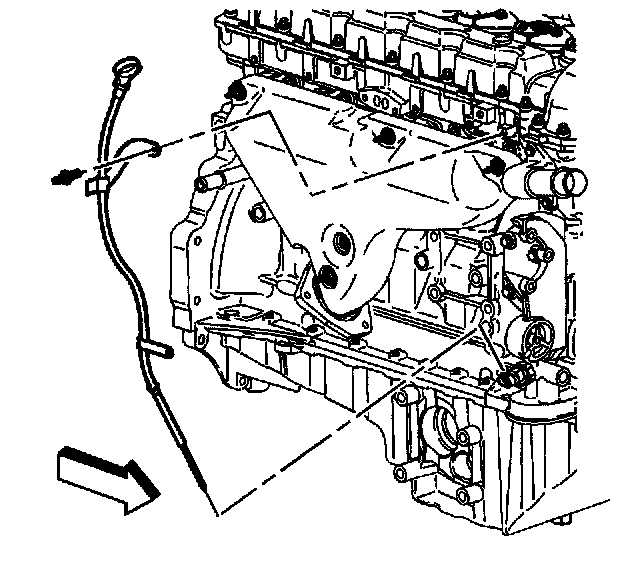

1. Install the oil level indicator tube.
2. Add sealant GM P/N United States 12346004, GM P/N Canada 10953480 to the oil level indicator tube stud threads.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator tube stud.
^ Tighten the oil level indicator tube stud to 10 Nm (89 inch lbs.).
4. Install the oil level indicator.
