Crankshaft Balancer Installation

^ Tools Required
- J 36660-A Torque Angle Meter
- J 41478 Crankshaft Balancer Installer
- J 44226 Crankshaft Balancer Holder





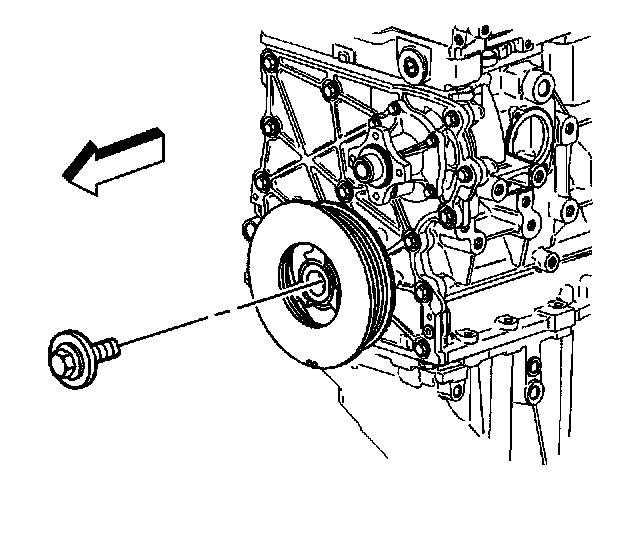

1. Install the crankshaft balancer using J 41478.
2. Remove J 41478.

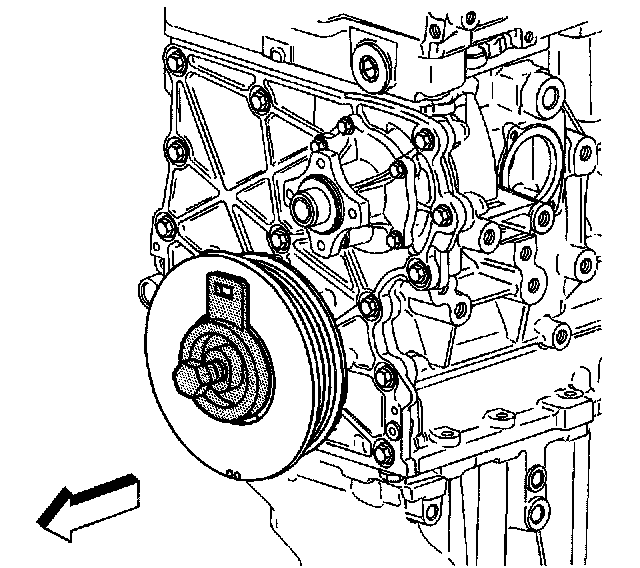

3. Install J 44226 to hold the crankshaft balancer.
4. Hold the flywheel or back of the crankshaft. The crankshaft balancer does not have a keyway so the crankshaft could turn when tightening, causing an improper torque.





Important: Be sure the crankshaft balancer friction washer, GM P/N 12573950, was installed prior to the engine front cover installation.

Notice: Refer to Fastener Notice in Service Precautions.

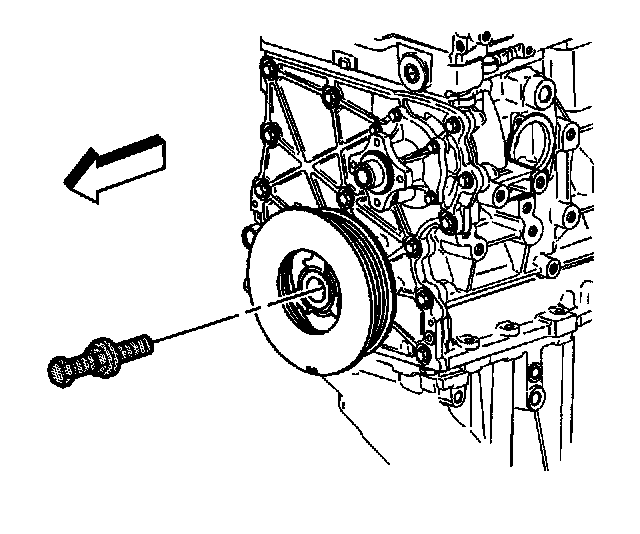

5. Install the crankshaft balancer washer and new bolt.
5.1. Tighten the new crankshaft balancer bolt while holding the front and back to 150 Nm (110.6 ft. lbs.).
5.2. Use J 36660-A to tighten the crankshaft balancer bolt an additional 180°.
6. Remove J 44226.
