Chevy Truck
>>
2002
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Power Locks
Power Locks

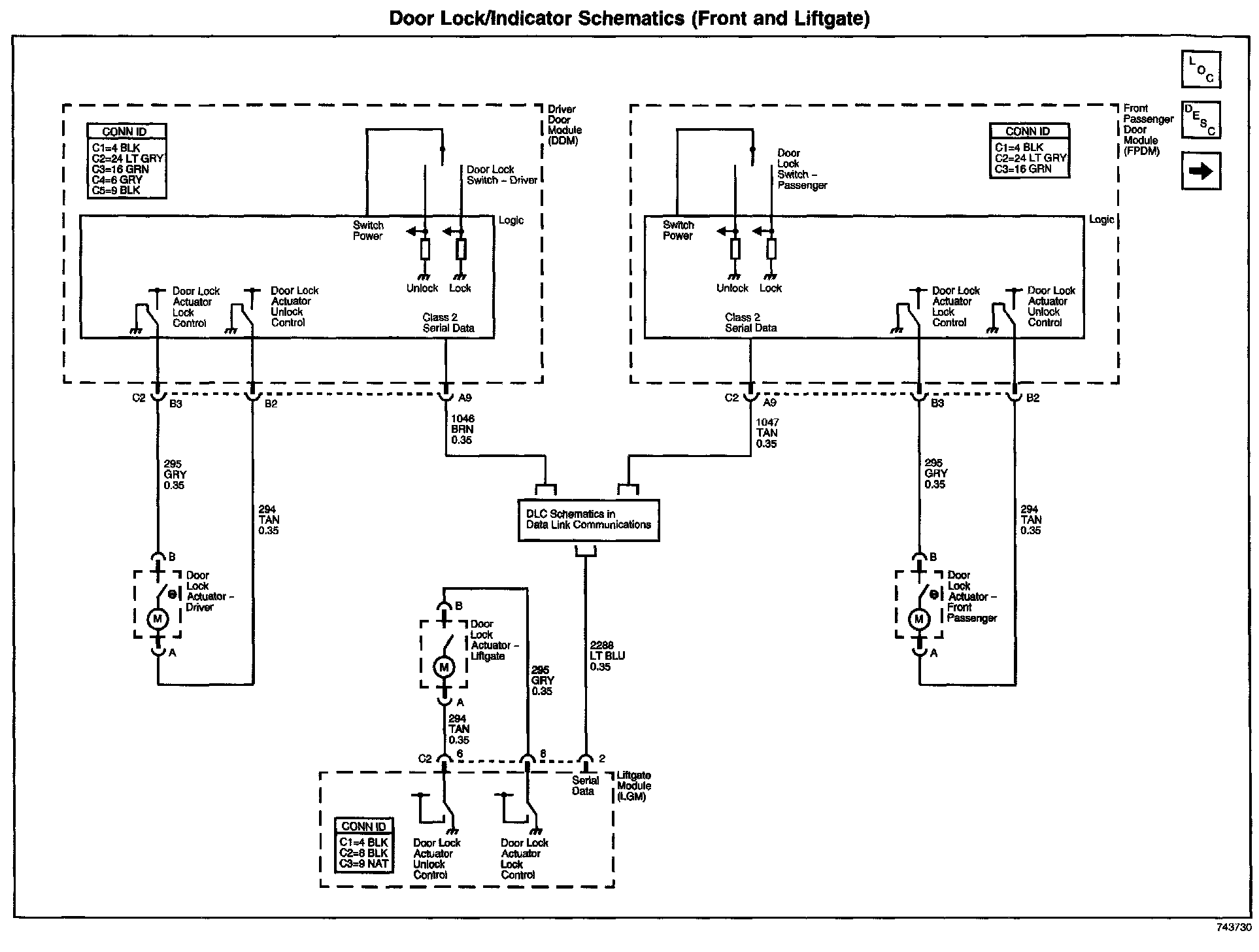

Door Lock/Indicator Schematics: Front And Liftgate:
