Windshield Washer Pump
Windshield Washer Pump

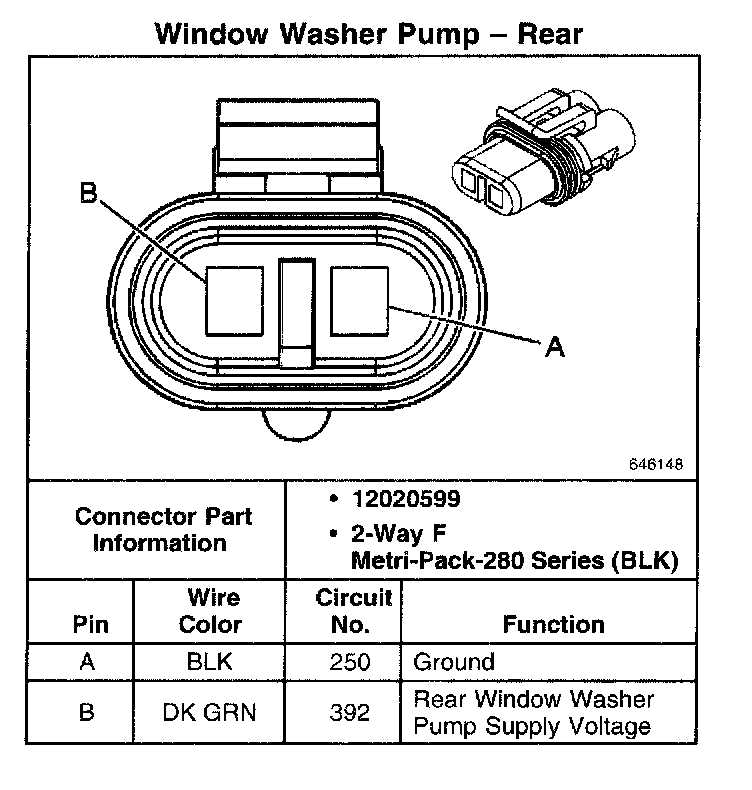

Window Washer Pump - Rear:
Windshield Washer Fluid Pump:
