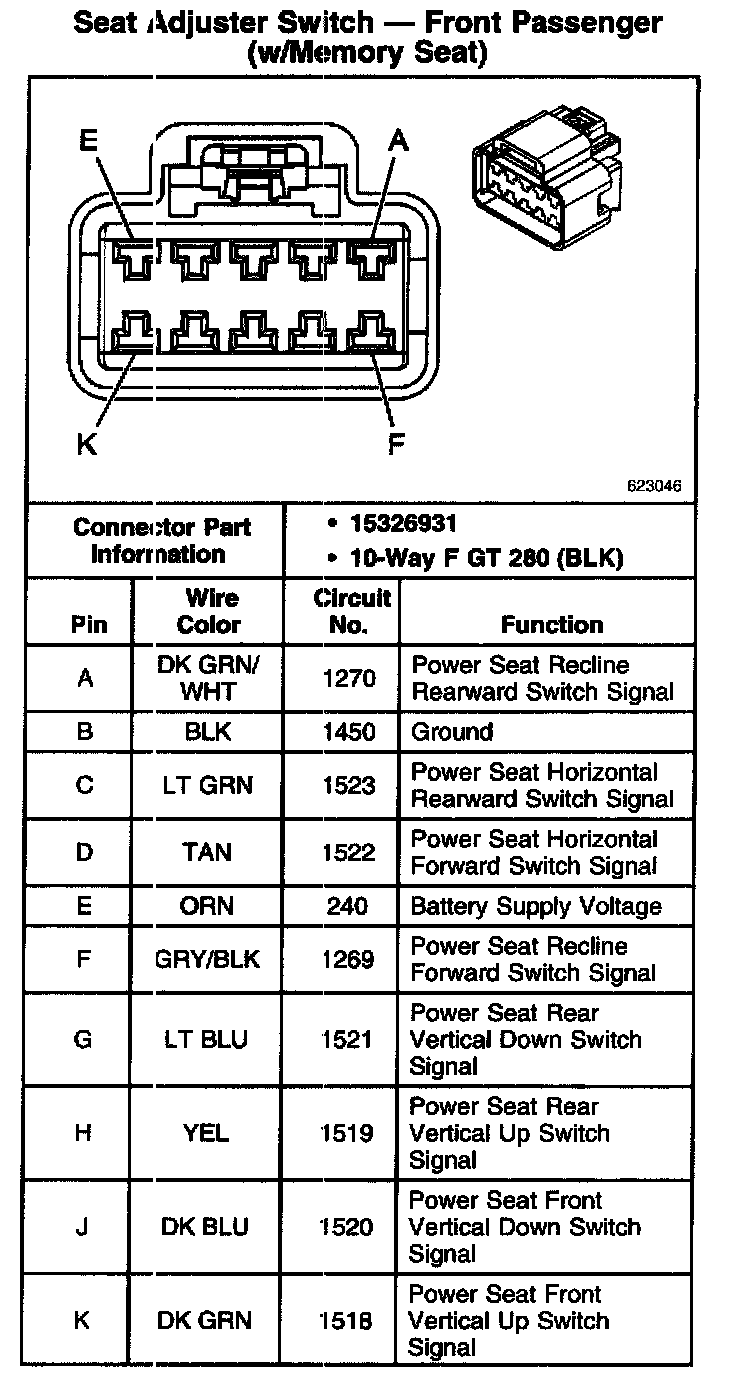

Seat Adjuster Switch - Front Passenger (W/Memory Seat)
Seat Adjuster Switch - Front Passenger (W/Memory Seat)
Seat Adjuster Switch - Front Passenger (W/Memory Seat):
