Chevy Truck
>>
2002
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Recline Motor - Driver/Passenger
Seat Recline Motor - Driver/Passenger

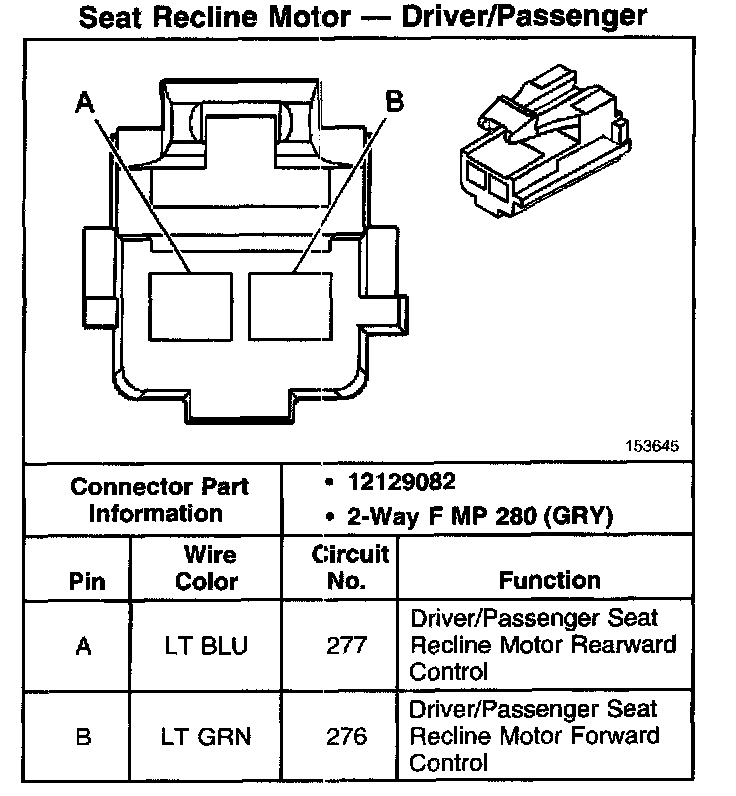

Seat Recline Motor - Driver/Passenger:
