Home >> Chevy Truck >> 2002 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light >> Courtesy/Reading Lamp - LF

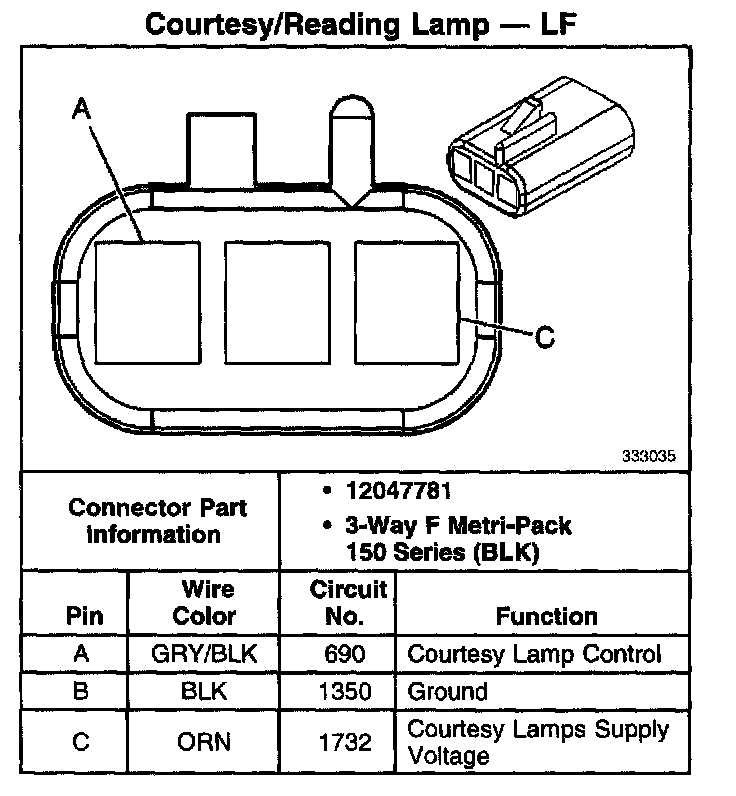

Courtesy/Reading Lamp - LF

Courtesy/Reading Lamp - LF:
