Chevy Truck
>>
2002
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C301-C316
>>
C307
C307

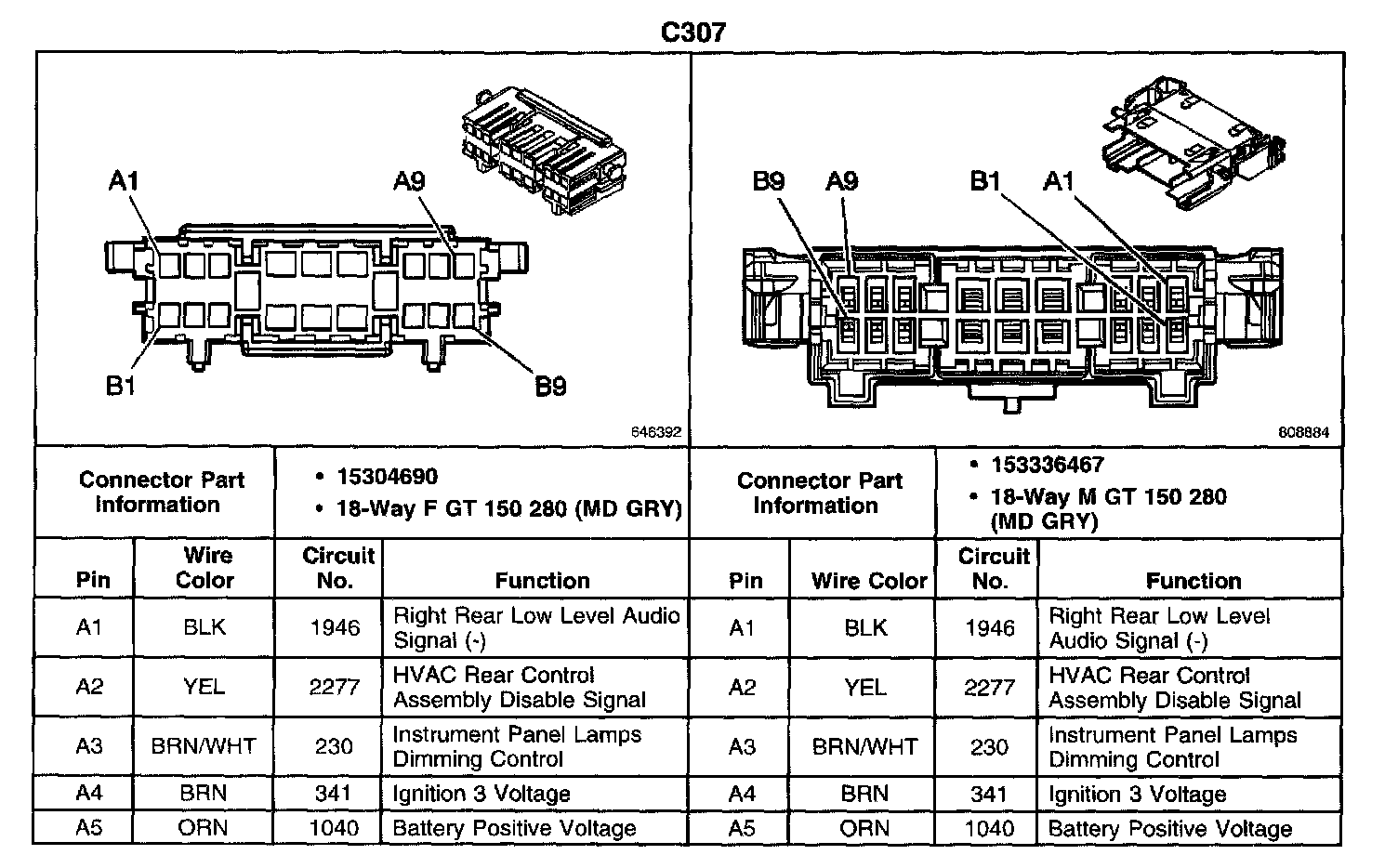

C307 Part 1:

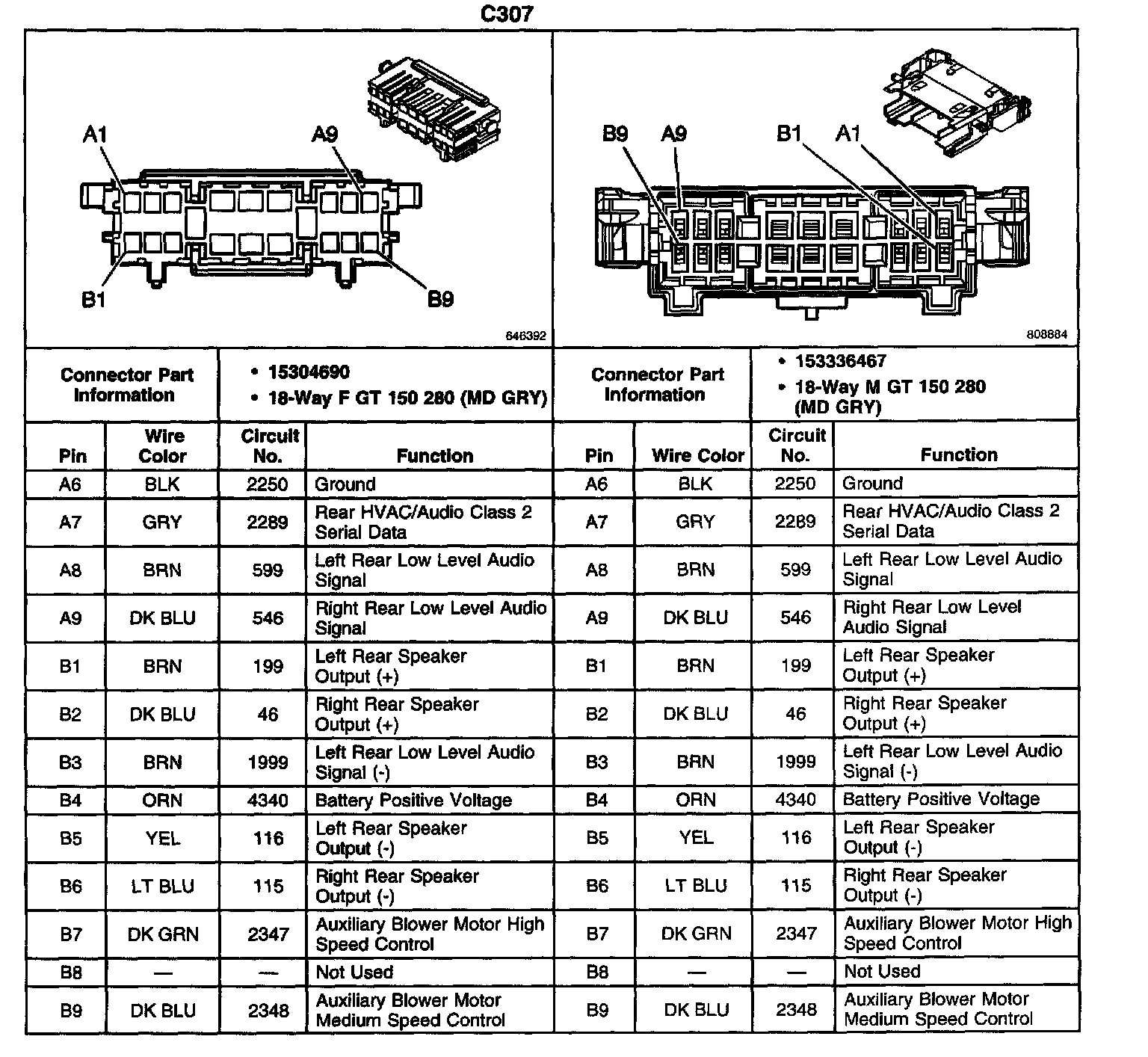

C307 Part 2:
