Home >> Chevy Truck >> 2002 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag >> Inflatable Restraint IP Module

Inflatable Restraint IP Module

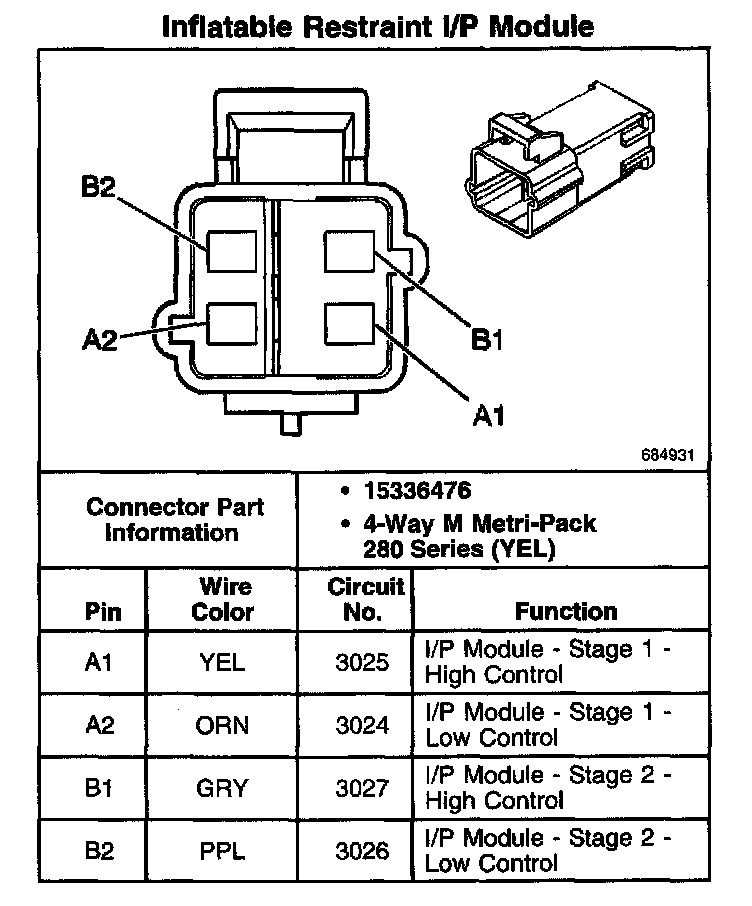

Inflatable Restraint I/P Module:
