Sun Visor: Service and Repair

Sunshade Replacement

Removal Procedure

1. Remove the windshield garnish molding.
2. Release the front assist handle from the headliner. Refer to Assist Handle Replacement.
3. Recline the bucket seat and release the upper portion of the center pillar trim panel. Refer to Garnish Molding Replacement - Center Pillar.
4. Open and rotate the sunshade parallel to the side window.

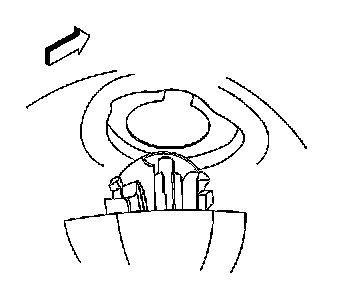

5. Insert a small tool into the bezel access hole (1).

Important: Midway through the rotation cycle, the tool will move further into the access hole.

6. Gently push upward on the tool while rotating the sunshade parallel to the windshield. The sunshade bezel should appear to be recessed.

Important: Ensure the bezel is recessed before removing the sunshade from the headliner.

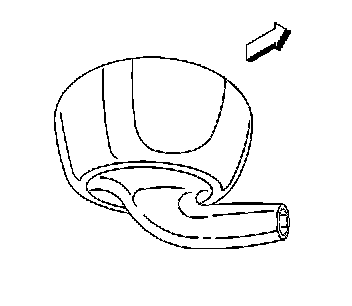

7. In order to remove the sunshade from the roof panel, carefully grab the headliner at the windshield pillar and apply downward pressure while gently rocking the sunshade.




8. Remove the inboard retainer screw.

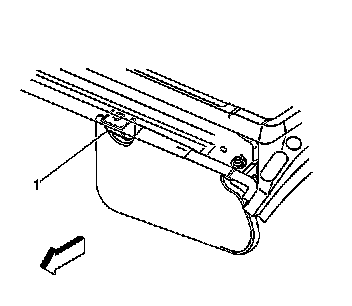

9. Remove the inboard retainer (1) from the headliner.

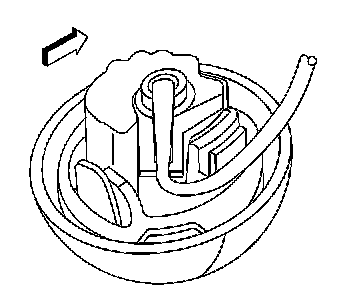

10. Reach above the headliner to access the electrical connector (1).
11. Remove the electrical connectors from the headliner substrate.
12. Disconnect the sunshade electrical connector from the headliner harness.
13. Remove the sunshade from the vehicle.

Installation Procedure




1. Lower the headliner in order to gain access to the wire harness.
2. Position the sunshade to the headliner.
3. Connect the sunshade electrical connector to the headliner harness.

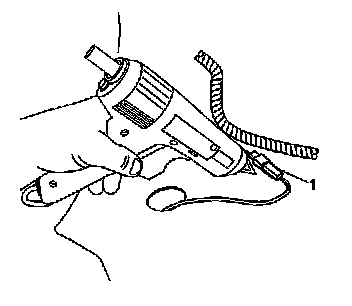

4. Using a glue gun, hot melt the electrical connectors (1) to the headliner substrate, ensuring the connectors are securely attached to the substrate.




5. Route the wire harness until fully seated into the sunshade wire harness channel located on the pivot arm.

Important: If the wire harness retaining clip is removed from the sunshade for any reason, a new retaining clip must be installed.




6. Position the wire harness retaining clip between the headliner and the roof panel.
7. Position the index tabs on the wire harness retaining clip to the pivot arm and install the clip until fully seated.
With the wire harness retaining clip installed, the sunshade should remain attached to the headliner.




8. Position the inboard retainer (1) to the roof panel.

Notice: Refer to Fastener Notice in Service Precautions.

9. Install the inboard retaining screw.

Tighten the screw to 1.2 N.m (10 lb in).




10. With the sunshade parallel to the windshield, index the pivot arm tab to the roof panel slot.




11. Apply and maintain upward pressure to the pivot arm while rotating the sunshade parallel to the side window. The sunshade arm should appear flush with the bezel.
12. Rotate and clip the sunshade to the inboard retainer.
13. Ensure the pivot arm retaining tabs are fully seated to the roof panel.
14. Install the front assist handle to the roof panel.
15. Install the windshield garnish molding.
16. Install the center pillar trim panel.
17. Return the bucket seat to an upright position.
