Home
>>
Chevy Truck
>>
2002
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Ignition Controls
>>
Ignition Coils
Ignition Coils

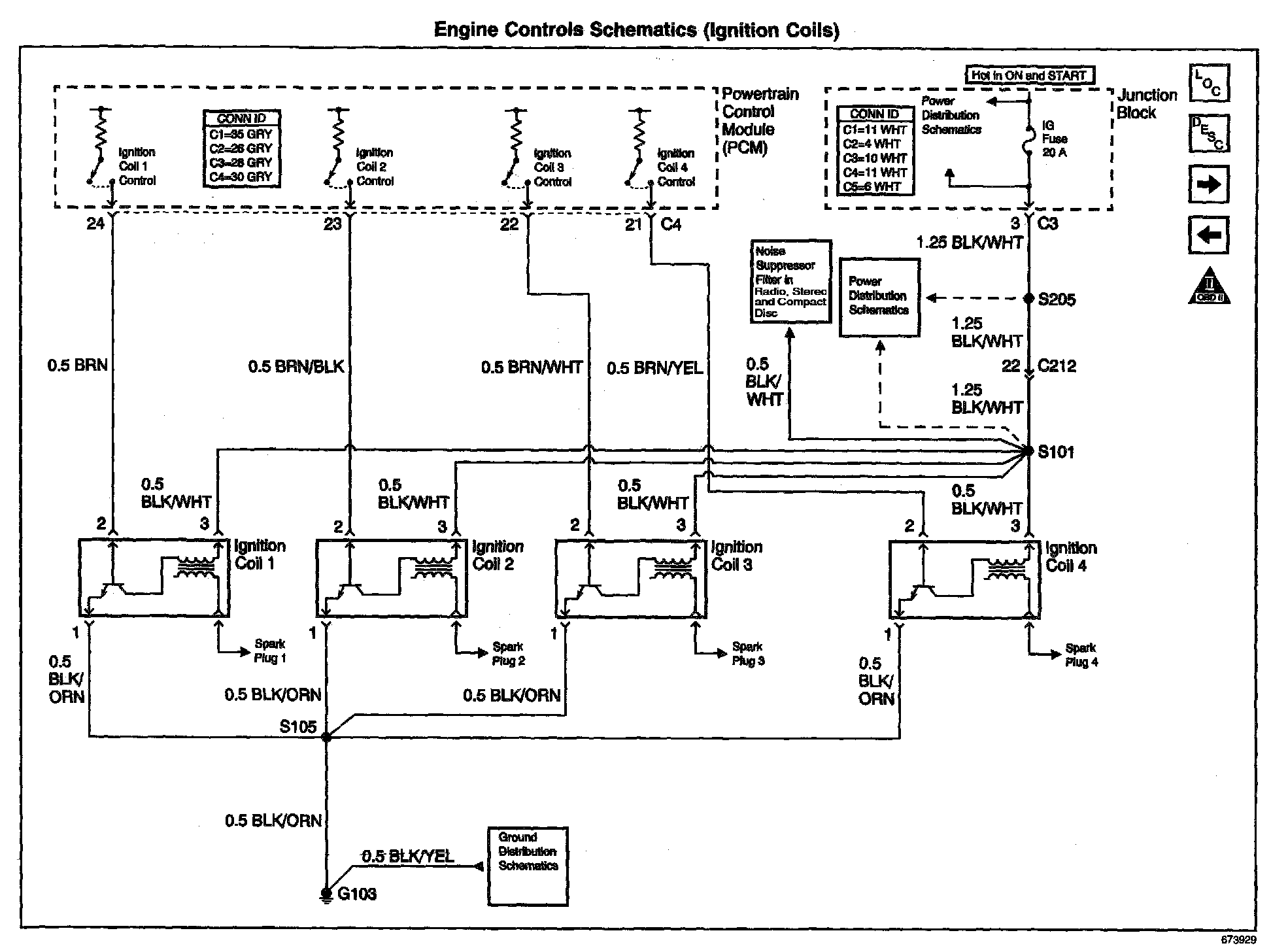

Engine Controls Schematics: Ignition Coils:
