2 Door

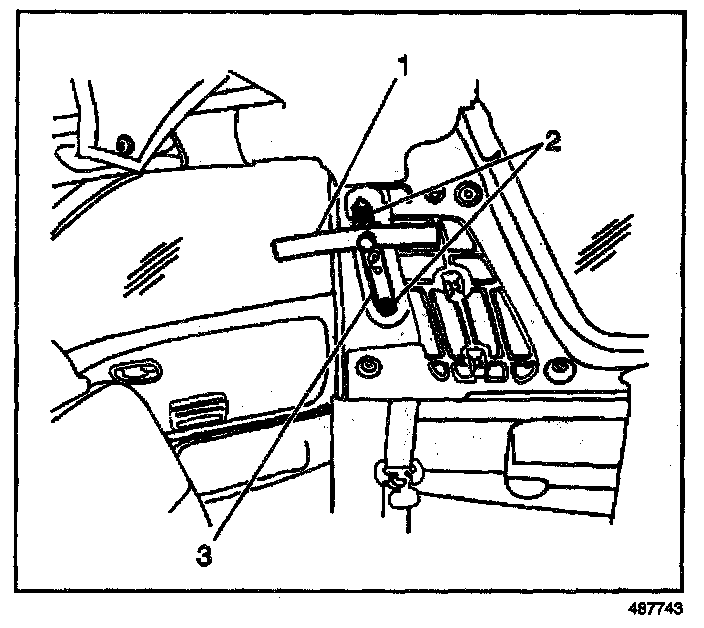

REMOVAL PROCEDURE




1. Remove the upper center pillar trim.
2. Remove the following components from the vehicle:
2.1. The 2 bolts (2)
2.2. The front seat shoulder belt retractor tension adjuster (3)

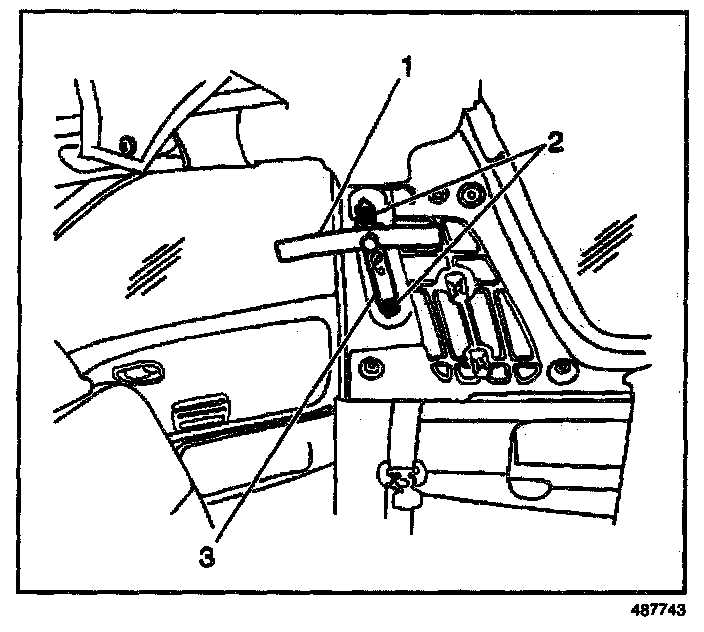

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the front Seat belt shoulder belt retractor tension adjuster (3) to the vehicle. Secure the adjuster with the 2 bolts (2).

Tighten
Tighten the front seat belt shoulder belt retractor tension adjuster bolts to 35 N.m (25 lb ft).

2. Install the upper center pillar trim.
