Chevy Truck
>>
2002
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
STOP Fuse
STOP Fuse

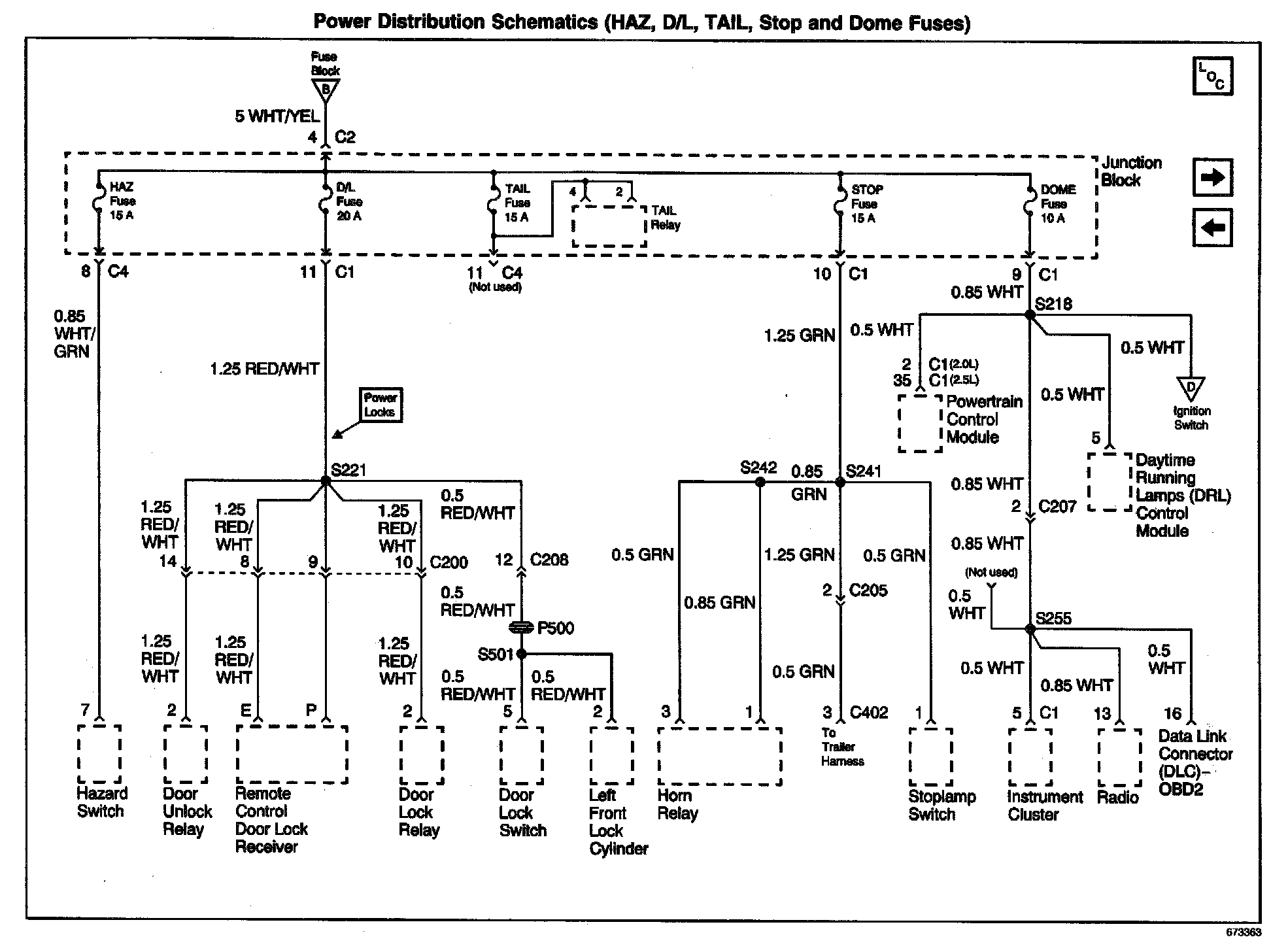

Power Distribution Schematics: HAZ, D/L, TAIL, Stop And Dome Fuses:
