Cigar Lighter/Auxiliary Outlets
>>
Fuse Block - IP
>>
Fuse Block
Fuse Block

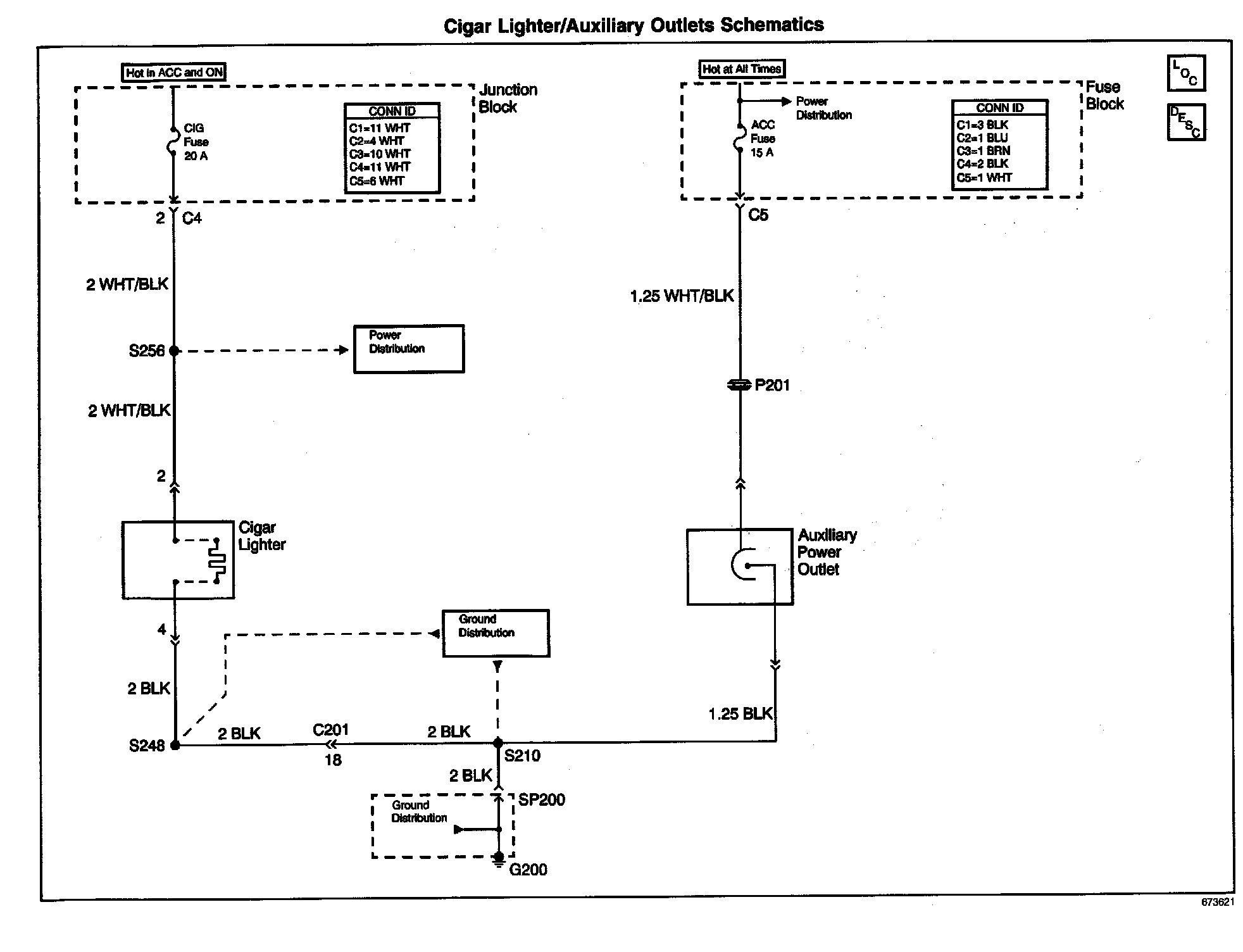

Cigar Lighter/Auxiliary Outlets Schematics:
